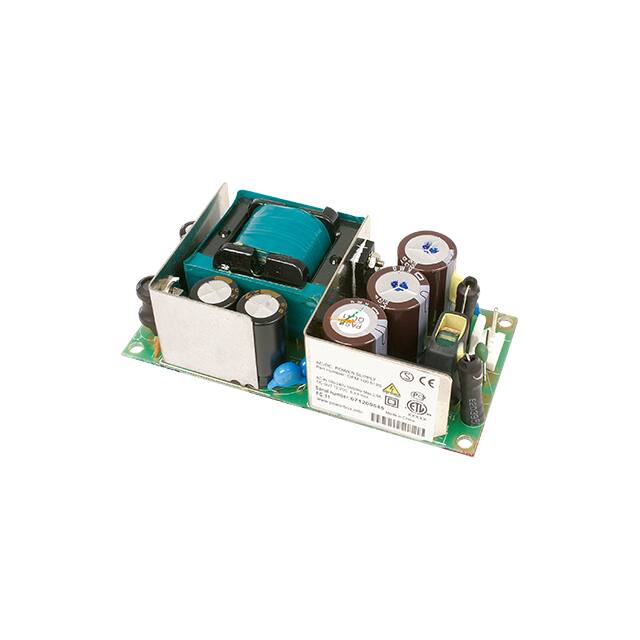

The Powerbox OFM1005126 is a 100W single output AC/DC switch mode power supply from the Medline 100 series. It offers a standard 2x4 inch footprint and ultra-high power density of 12.5W/sq inch. This power supply is designed with a reliable front edge fly-back topology, resulting in a very low component count.
Key electrical specifications include a nominal input range of 100-240VAC and an output voltage of 15VDC with 5% tolerance. It provides up to 100W continuous output power and features efficiencies of 87-90% at 230VAC full load. The unit offers superior EMC performance and intelligent over-temperature protection, along with overcurrent and overvoltage protection.
Designed for demanding applications, the OFM1005126 is approved according to IEC/UL 60601-1 and is suitable for ITE (Commercial) and Medical applications. It operates within a temperature range of 0°C to 50°C and features Class I isolation with 4000 VAC isolation between input and output.
The power supply has a chassis mount type and measures 51 x 102 x 32 mm. It supports convection or fan cooling and has a MTBF of 270,000 hours at 25°C.
The OFM1005126 provides a 15V output with up to 100W of power.
The input voltage range is 90-264VAC at 47-63Hz.
It is approved to IEC/UL 60601-1 and IEC 60950-1 safety standards.
The operating temperature range is 0°C to 50°C.
The isolation voltage is 4000VAC between input and output.
Typical efficiency is 87-90% at 230VAC full load.
The dimensions are 51 x 102 x 32 mm (2x4 inches).
