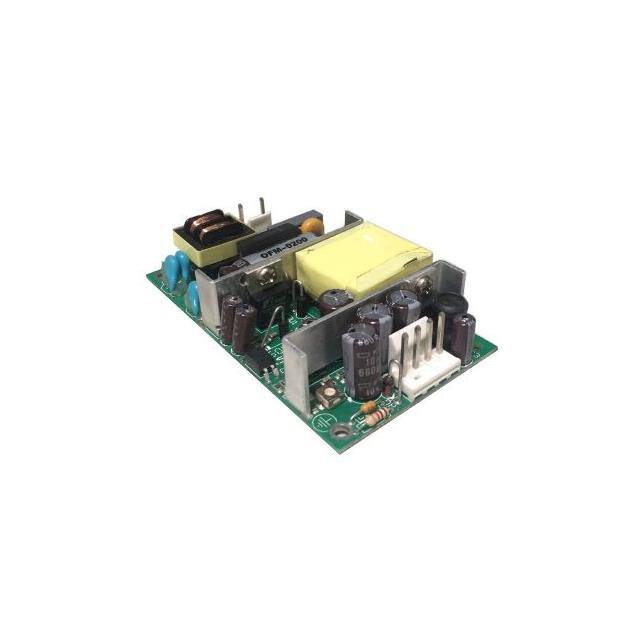

The Astrodyne TDI OFM-0206 is a 20-watt ultraminiature open frame switching power supply designed for ITE (Commercial) applications. It accepts a universal input voltage range of 90-264 VAC.
This dual output model provides +/-12 VDC with a maximum average output current of 0.92A per output. Key electrical specifications include a typical efficiency of 78% at nominal input and full load, load regulation of ±0.5%, and line regulation of ±1% for dual outputs. It offers 3000 VAC isolation from input to output.
The power supply has a compact open frame construction with dimensions of 2.0" x 3.5" x 0.8". It operates within an ambient temperature range of 0°C to 50°C and meets safety standards including IEC 60950-1 and UL/cUL, CSA C22.2.
Designed for reliable operation, it features continuous short circuit protection with auto-recovery and a hold-up time of 14ms at 120 VAC. Its features include adjustable output and universal input capabilities.
The OFM-0206 provides dual outputs of +12 VDC and -12 VDC.
Each output of the OFM-0206 can deliver a maximum average current of 0.92A.
The OFM-0206 accepts a universal input voltage range of 90-264 VAC.
The typical efficiency of the OFM-0206 is 78% at nominal input and full load.
The OFM-0206 measures 2.0 inches by 3.5 inches by 0.8 inches.
The OFM-0206 operates within a temperature range of 0°C to 50°C.
The OFM-0206 complies with IEC 60950-1 and UL/cUL, CSA C22.2 safety standards.
