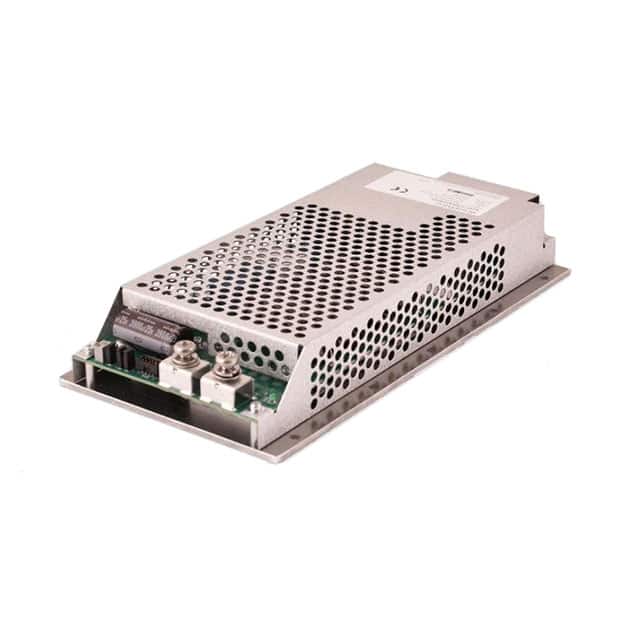

This Powerbox OFI700A28 is an open frame AC/DC power supply designed for ITE (Commercial) applications. It delivers 700W of power with a single output and operates over a wide input voltage range of 85 to 264 VAC.
Key features include adjustable output, baseplate, power factor correction (PFC), remote on/off, and remote sense capabilities. The unit is designed for chassis mounting and has dimensions of 249.9mm x 126.0mm x 38.1mm.
It operates within an extended temperature range of -40°C to 95°C. The power supply is compliant with standard IEC 62368-1 and carries multiple agency approvals including CB, CE, CSA, cURus, EN, UKCA, and UL.
Note that the DC input is not UL certified and requires an external fuse. RoHS, MSL, and REACH compliance are declared but unverified.
85 to 264 VAC.
-40°C to 95°C.
88.5%.
Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense, Universal Input.
CB, CE, CSA, cURus, EN, UKCA, UL.
249.9mm x 126.0mm x 38.1mm.
700W.
