| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Features | |
| Insulation Resistance | |
| Lead Style | |
| Motor Type | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| Rated Current | |
| Static Pressure | |
| Storage Temperature | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Range | |
| Weight | |
| Width |

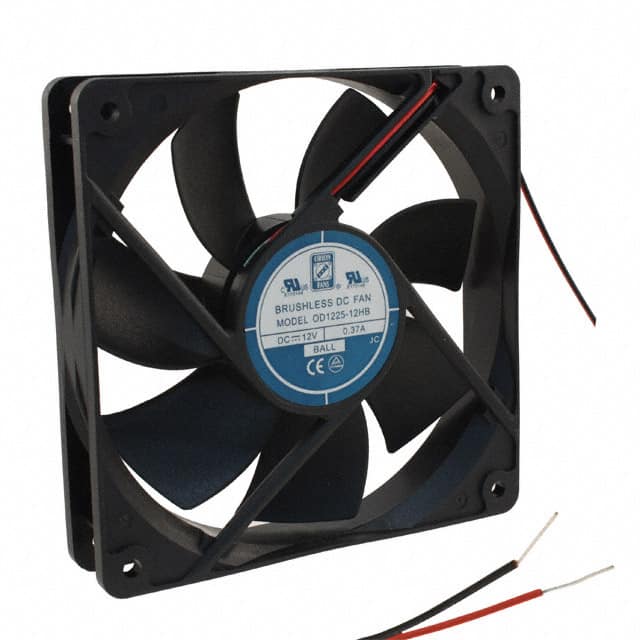

The Orion Fans OD1225 Series fan, model OD1225-12HB, is a 12VDC axial fan designed for cooling applications. It operates with a rated voltage of 12VDC and a voltage range of 8 to 13.8VDC.
This fan delivers a maximum airflow of 120 CFM and achieves a speed of 3100 RPM. It operates at a noise level of 42.0 dBA and provides a maximum static pressure of 0.240 in H2O. The fan's construction includes a PBT frame and impeller, both rated UL94 V-0. It utilizes a ball bearing system for reliable operation.
The OD1225-12HB has an operating temperature range of -20°C to +65°C and a life expectancy of 60,000 hours (L10 at 35°C). It features auto restart functionality and terminates with two 24 AWG lead wires. The dimensions are 120mm L x 120mm H with a 25mm width.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The OD1225-12HB fan operates at 12VDC.
The fan has a size of 120mm L x 120mm H and a width of 25mm.
The operating temperature range is -20°C to +65°C.
The fan provides a maximum airflow of 120 CFM.
This fan utilizes a ball bearing system.
The rated speed of the fan is 3100 RPM.
The noise level is 42.0 dBA.
