| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Industrial Grade | |
| SVHC Present | |
| Turn Off Time | |
| Turn On Time |

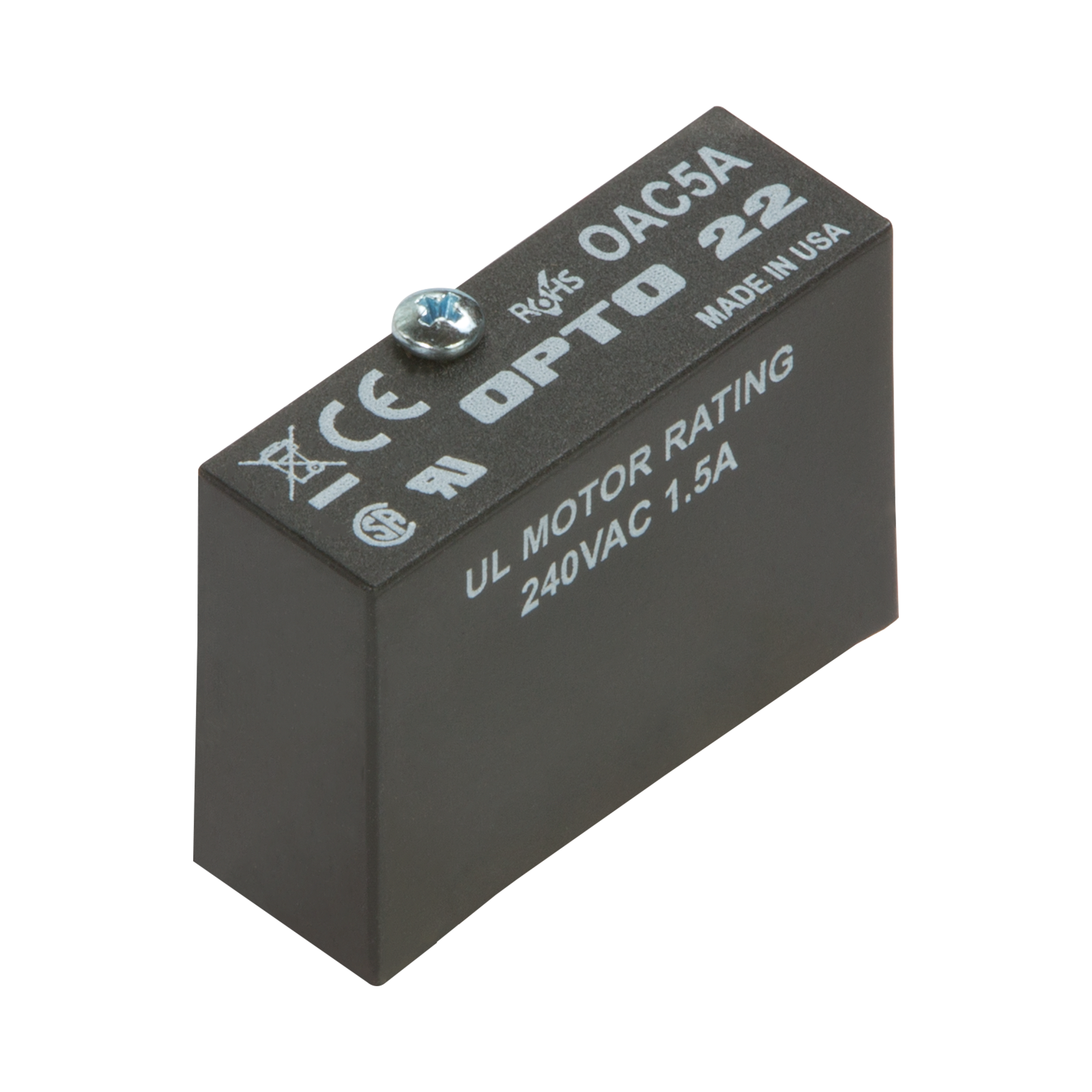

The Opto 22 OAC5A is a standard AC output module from the G1 I/O family, engineered for controlling or switching AC loads. It provides a robust 24-280 VAC operating voltage range and is compatible with 5 VDC logic.
Key electrical specifications include 4000 volts of transient optical isolation between field devices and control logic, ensuring system integrity. The module features zero voltage turn-on and zero current turn-off for efficient operation. It has a nominal line voltage of 240 VAC, an operating frequency range of 25-65 Hz, and a maximum peak output voltage drop of 1.6 volts.
This module is equivalent to a single pole, single throw, normally open contact (FORM A, SPST-NO, Make). Typical applications include switching loads such as relays, solenoids, motor starters, heaters, and lamps or indicators. The module operates within an ambient temperature range of -30 to 70 °C.
| Qty | Low | High |
|---|---|---|
| 1+ | $27.00 | $27.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24-280 VAC.
-30 to 70 °C.
4000 Vrms transient isolation.
5 VDC nominal, 2.5-8 VDC range.
3 amps at 45 °C ambient, derated to 2 amps at 70 °C.
1/2 cycle maximum for both turn-on (zero-voltage) and turn-off (zero-current).
80 amps peak.
