| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | 1908 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Base Resonator | |
| Conflict Minerals | |
| Current | |
| Frequency | |
| Frequency Range | |
| Frequency Stability | |
| Function | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

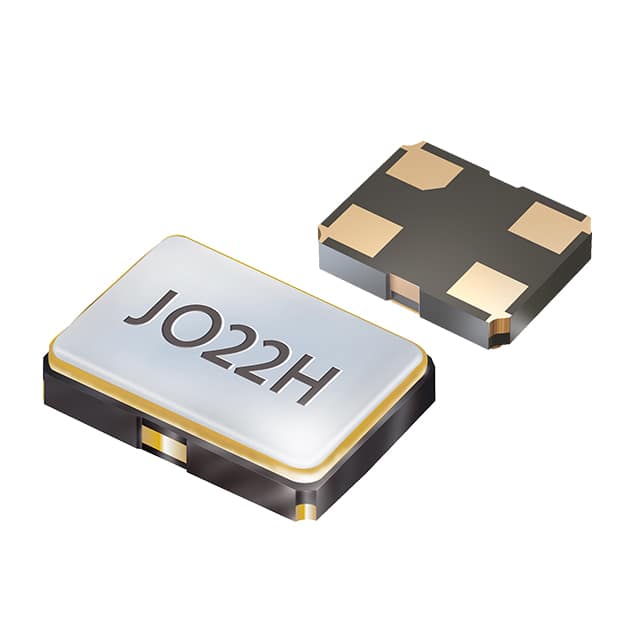

This is a surface-mount crystal oscillator (XO) from Jauch Quartz GmbH, part of the JO22H series. It provides a 26 MHz HCMOS output with a 3.3V supply voltage. The frequency stability is ±15ppm over all conditions including temperature, supply variation, shock, vibration, and first-year aging.
The oscillator features a standby (power down) function controlled via pin 1. When disabled, the output goes to high impedance and standby current is typically 10 µA. Rise and fall times are 5 ns max. Phase jitter is less than 3.0 ps RMS typical (12 kHz to 20 MHz). Symmetry is 45% to 55%.
The device is housed in a compact 2.5mm x 2.0mm 4-SMD no-lead package with a seated height of 1.0mm. It is RoHS compliant, REACH unaffected, and conflict mineral free. Operating temperature range is -40°C to +85°C. Standard packaging is 500 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 500+ | $1.26 | $1.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.3V ±5%.
4-SMD, No Lead, 2.5mm x 2.0mm.
-40°C to +85°C.
Yes, RoHS3 compliant.
26 MHz.
HCMOS.
±15ppm.
