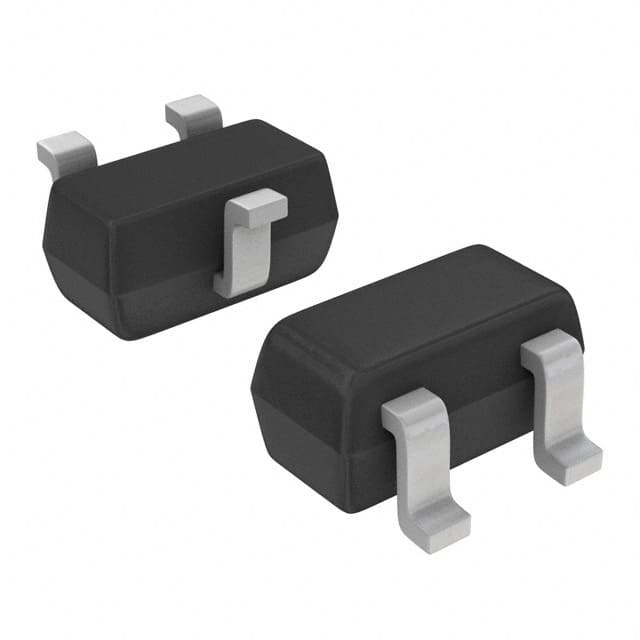

NZF220TT1G The On Semiconductor NZF220TT1G is an EMI filter with RC (Pi) topology, designed for low-pass filtering. It features 110 Ohm resistance and 22pF capacitance, with integrated ESD protection.
Mfr Part #:

NZF220TT1G

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NZF220TT1G is an EMI filter with RC (Pi) topology, designed for low-pass filtering. It features 110 Ohm resistance and 22pF capacitance, with integrated ESD protection.
✓ Total Stock: 402,638 pcs
$ Price Range: $0.99

NZF220TT1G Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
244,324 pcs
On Request
244324 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
155,000 pcs
On Request
155000 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
3,314 pcs
On Request
3314 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NZF220TT1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Attenuation Value
Automotive Grade
Capacitance
Center
ESD Protection
Filter Order
Height
Industrial Grade
Length
Medical Grade
Military Grade
Mounting Type
Number of Channels
Operating Temperature
Resistance
Storage Temperature
Tape & Reel
Technology
Type
Values
Width
View Similar Products (0)

NZF220TT1G Description

Short technical summary and product information.

The On Semiconductor NZF220TT1G is a surface-mount EMI filter utilizing an RC (Pi) topology for low-pass filtering applications. This device is engineered to suppress EMI/RFI noise, making it suitable for protecting data lines in mobile devices.



Key electrical characteristics include a resistance value of 110 Ohms and a capacitance of 22pF. The filter also provides ESD protection, meeting IEC61000-4-2 standards. Its compact SC-75 package (SOT-416) minimizes parasitic inductance for improved filtering performance.



Designed for integration into compact electronic systems, the NZF220TT1G is ideal for applications requiring robust noise suppression on input/output conductors. The surface mount package facilitates automated assembly processes.

NZF220TT1G Quick Information

Product Type: EMI Filter
Series: NZF220TT1
Canonical Name: NZF220TT1G EMI Filter with ESD Protection
Subcategory: RC (Pi) Filter

NZF220TT1G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NZF220TT1G Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NZF220TT1G Features

  • Low pass RC Pi filter technology.
  • 110 Ohm resistance for signal filtering.
  • 22pF capacitance for high-frequency applications.
  • Surface mount design for compact integration.
  • ESD protection for device safety.

NZF220TT1G Applications

  • Suppresses EMI/RFI noise on data lines.
  • Protects sensitive electronic circuits.
  • Used in portable communication devices.
  • Facilitates cleaner signal integrity.

NZF220TT1G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the NZF220TT1G EMI filter?

The resistance value is 110 Ohms.

What is the capacitance of the NZF220TT1G EMI filter?

The capacitance is 22pF.

What is the cutoff frequency for the NZF220TT1G EMI filter?

The cutoff frequency is 220MHz.

Does the NZF220TT1G EMI filter offer ESD protection?

Yes, the NZF220TT1G EMI filter provides ESD protection.

What package type is the NZF220TT1G EMI filter available in?

The NZF220TT1G EMI filter is available in SC-75 and SOT-416 packages.

What are the applications for the NZF220TT1G EMI filter?

The NZF220TT1G EMI filter is designed for data lines in mobile devices.

What is the operating temperature range for the NZF220TT1G EMI filter?

The operating temperature range is -40°C to 85°C.
