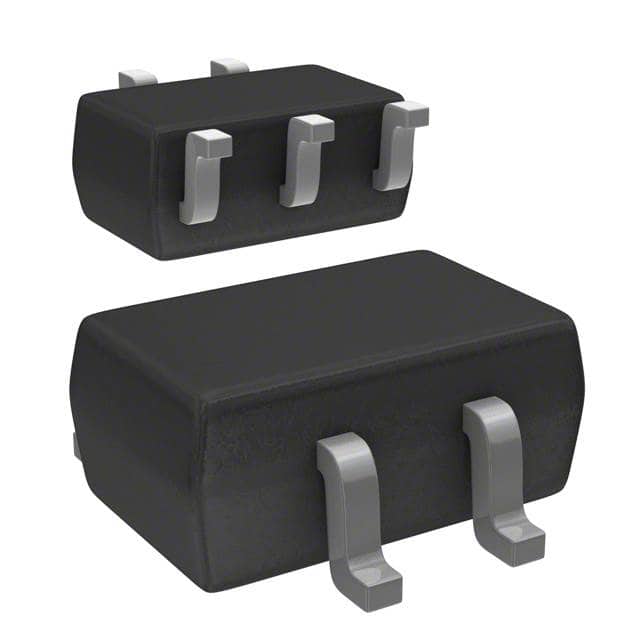

NZF220DFT1G The On Semiconductor NZF220DFT1G is an EMI filter designed for data lines. It features RC (Pi) technology with a 110 Ohm resistance and 22pF capacitance, offering a cutoff frequency of 220MHz.
Mfr Part #:

NZF220DFT1G

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NZF220DFT1G is an EMI filter designed for data lines. It features RC (Pi) technology with a 110 Ohm resistance and 22pF capacitance, offering a cutoff frequency of 220MHz.
✓ Total Stock: 2,104 pcs
$ Price Range: $0.99

NZF220DFT1G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,104 pcs
On Request
2104 pcs On Request 1 On Request On Request 0537+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NZF220DFT1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Center
Diode Capacitance
ESD Protection
Filter Order
Height
Length
Mounting Type
Number of Channels
Resistance
Storage Temperature
Tape & Reel
Technology
Type
Values
Width
View Similar Products (0)

NZF220DFT1G Description

Short technical summary and product information.

The On Semiconductor NZF220DFT1G is a surface-mount EMI filter designed to suppress noise in electronic systems. It utilizes RC (Pi) filter technology, providing a low-pass filtering response.



This component features a resistance value of 110 Ohms and a capacitance of 22 pF, with a nominal cutoff frequency of 220 MHz. It is designed for 2 channels and includes ESD protection, meeting IEC61000-4-2 standards. The filter is suitable for applications involving data lines in portable products and communication systems.



The device is housed in a compact SC-88A package, measuring 2.00mm x 1.25mm with a height of 1.09mm. Its surface-mount design minimizes parasitic inductance, contributing to a more ideal filtering response. The filter is also Pb-Free and AEC-Q101 qualified for automotive applications when ordered with the 'S' prefix.



Key electrical characteristics include a Zener breakdown voltage between 6-8V and a maximum junction temperature of 150°C. The filter's design aims to suppress EMI/RFI noise effectively in systems subjected to electromagnetic interference.

NZF220DFT1G Quick Information

Product Type: EMI Filter
Series: NZF220DFT1G
Canonical Name: On Semiconductor NZF220DFT1G EMI Filter with ESD Protection
Subcategory: RC Network

NZF220DFT1G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NZF220DFT1G Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NZF220DFT1G Features

  • RC (Pi) low-pass EMI filter.
  • 110 Ohm resistance, 22pF capacitance.
  • 220MHz nominal cutoff frequency.
  • Includes ESD protection.
  • Surface mount SC-88A package.

NZF220DFT1G Applications

  • Suppresses EMI/RFI noise.
  • Ideal for data line filtering.
  • Used in portable electronics.
  • Suitable for communication systems.

NZF220DFT1G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the cutoff frequency of the NZF220DFT1G EMI filter?

The nominal cutoff frequency is 220 MHz.

What are the resistance and capacitance values for this EMI filter?

The filter has a resistance of 110 Ohms and a capacitance of 22 pF.

Does the NZF220DFT1G offer ESD protection?

Yes, it provides ESD protection.

What type of package is the NZF220DFT1G in?

It is in an SC-88A package.

What is the mounting type for this EMI filter?

The mounting type is Surface Mount.

Is the NZF220DFT1G RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1 Unlimited.
