| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,249,950 pcs
|
1249950 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| ESD Rating | |
| ESD Rating IEC (Maximum @ Air) | |
| ESD Rating IEC (Maximum @ Contact) | |
| Forward Voltage | |
| Impedance (Max) (Zzt) | |
| Junction and Storage Temperature Range | |
| Lead Solder Temperature | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Tape & Reel | |
| Thermal Resistance | |
| Tolerance | |
| Total Device Dissipation | |
| Voltage |
The ON Semiconductor NZD5V6MUT5G is a Zener diode designed for voltage regulation and protection, particularly in space-constrained applications. It offers a standard Zener breakdown voltage of 5.6V with a tolerance of ±5%. The device has a steady-state power rating of 300 mW at 25°C.

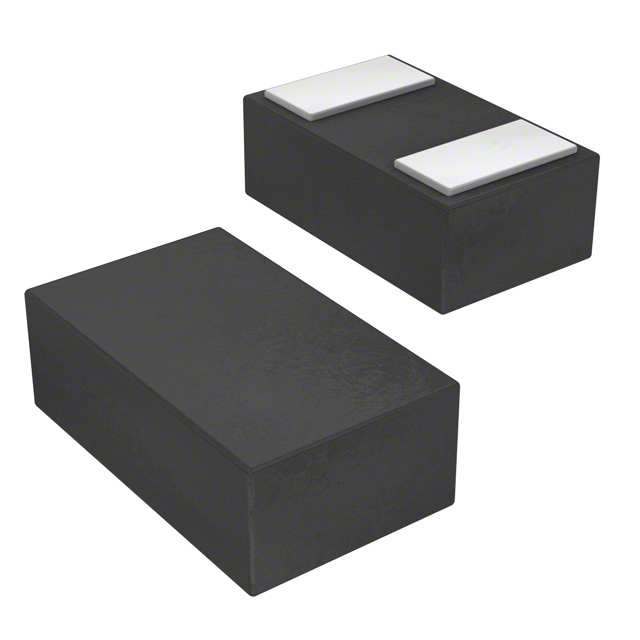

This Zener diode is housed in a compact 2-X3DFN package with dimensions of 0.60 mm x 0.30 mm and a low body height of 0.30 mm, making it suitable for mobile applications and other designs where space is at a premium. It operates over a temperature range of -55°C to 150°C and meets MSL 1 requirements.
Key electrical characteristics include a maximum forward voltage of 1.1V at 10mA and a reverse leakage current of 1µA at 2.5V. The maximum Zener impedance is 60 Ω at IZT. The device also features an ESD rating of Class 3 (>16 kV) per the Human Body Model.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Zener breakdown voltage is 5.6V with a tolerance of ±5%.
The device has a steady state power rating of 300 mW at 25°C.
The NZD5V6MUT5G is supplied in a 2-X3DFN package.
The operating temperature range is -55°C to 150°C.
The ESD rating is Class 3 (>16 kV) per the Human Body Model, and ±20 kV for contact and air discharge per IEC 61000-4-2.
