| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connection Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Insulation Resistance | |
| Panel Thickness | |
| SVHC Present |

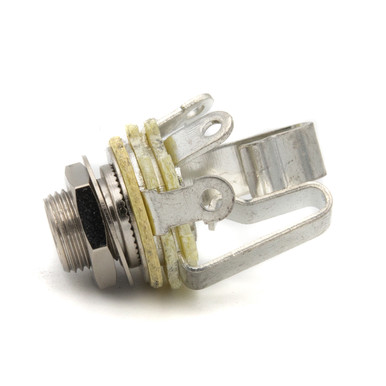

The Neutrik NYS230 is a 1/4" stereo, 3-pole open jack designed for reliable audio connections. It features brass contacts with tin and cerium plating, and nickel-plated brass hardware for durability. This jack supports panel thicknesses up to 3.5 mm and boasts a mechanical lifetime exceeding 5000 mating cycles.
Electrical specifications include a low contact resistance of ≤10 mΩ and an insulation resistance of >2000 MΩ. The dielectric strength is rated at 500V dc at 50Hz. The insertion and withdrawal force ranges from 5-40N, ensuring a secure connection.
Key materials include brass for the tube and nut, steel for washers, and epoxy-phenolic for the insulator washer. The NYS230 is suitable for various audio applications where a robust and dependable 1/4" jack is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum contact resistance is 10 mOhm.
The minimum insulation resistance is >2000 MOhm.
The dielectric strength is 500V dc.
It is rated for a minimum of 5000 mating cycles.
The insertion and withdrawal force is 5-40 N.
The maximum panel thickness is 3.5 mm.
