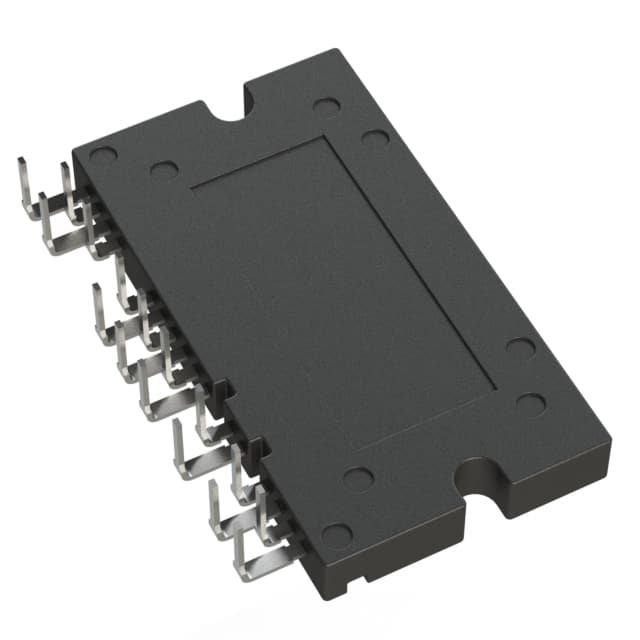

The NXV65HR82DZ2 is an H-Bridge power module from On Semiconductor, part of the APM16 Series. It is specifically designed for use in on-board chargers (OBC) for Electric Vehicles (EV) and Plug-in Hybrid Electric Vehicles (PHEV), functioning as a DC-DC converter.
This module features a 650V drain-to-source voltage and can handle a continuous drain current of up to 26A at 25°C case temperature. It is constructed with a 5 kV/1s electrically isolated substrate for simplified assembly and meets Creepage and Clearance requirements per IEC60664-1 and IEC 60950-1 standards. The module is housed in a 16-SSIP Exposed Pad, Formed Leads package and is designed for through-hole mounting.
Key features include a compact design for low total module resistance, module serialization for full traceability, and automotive qualification per AEC Q101 and AQG324 guidelines. It is also Lead Free, RoHS, and UL94V-0 compliant, contributing to the design of small, efficient, and reliable systems for reduced vehicle emissions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage is 650 V.
The continuous drain current is 26 A at 25°C case temperature.
The NXV65HR82DZ2 is in a 16-SSIP Exposed Pad, Formed Leads package.
The NXV65HR82DZ2 is mounted using the Through Hole method.
Yes, the NXV65HR82DZ2 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
