NX5P3363UKZ The NXP Semiconductors NX5P3363UKZ is a power switch IC designed for USB power distribution. It offers a current limit up to 3.3A and operates within a 4V to 5.5V range.
Mfr Part #:

NX5P3363UKZ

Available from 2 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors NX5P3363UKZ is a power switch IC designed for USB power distribution. It offers a current limit up to 3.3A and operates within a 4V to 5.5V range.
✓ Total Stock: 621 pcs
$ Price Range: $0.32

NX5P3363UKZ Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
617 pcs
On Request
617 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NX5P3363UKZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Features
Input Type
Interface
Mounting Style
Mounting Type
Number of Outputs
Operating Temperature
Operating Voltage
Output Configuration
Output Type
Power Dissipation
Ratio
Rds On (Typ)
Supplier Device Package
Switch Type
Voltage
View Similar Products (0)

NX5P3363UKZ Description

Short technical summary and product information.

The NX5P3363UKZ from NXP Semiconductors is a power switch IC categorized under Power Distribution Switches, Load Drivers. This component is designed for applications requiring controlled power delivery, particularly in USB interfaces. It features an N-channel output configuration with a high-side switch type, capable of handling up to 3.3A of output current.



The device operates within a supply voltage range of 4V to 5.5V and has a low typical on-resistance of 35mOhm, with a maximum of 49mOhm. It includes essential fault protection mechanisms such as over current, over temperature, and reverse current protection, along with a fault condition indicator. The operating temperature range is from -40°C to +85°C.

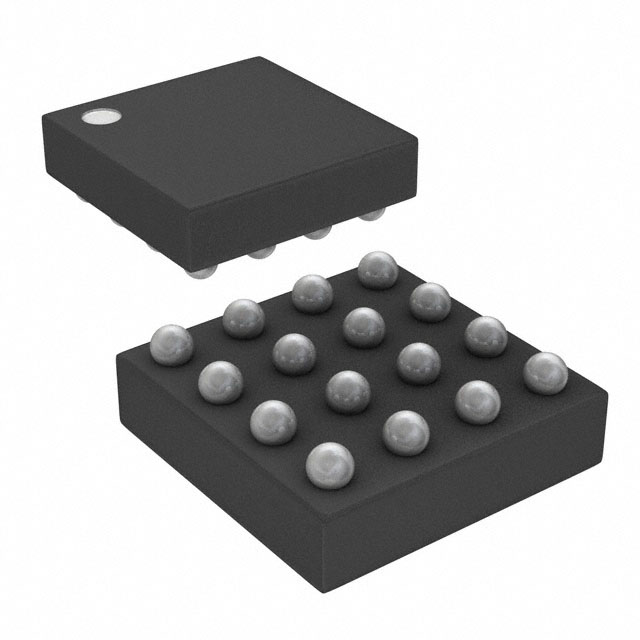

Packaged in a compact 16-WLCSP (2.2x2.2) format, the NX5P3363UKZ is suitable for surface mount applications. Its design incorporates features for USB power switching, making it a versatile component for power management in various electronic systems. The factory pack quantity is 3000 units.

NX5P3363UKZ Quick Information

Product Type: Power Switch IC
Series: Nx5p3363
Canonical Name: NX5P3363UKZ Power Switch IC
Subcategory: Power Switch ICs - Power Distribution

NX5P3363UKZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NX5P3363UKZ Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

NX5P3363UKZ Features

  • N-channel high-side USB power switch.
  • Output current up to 3.3 Amperes.
  • Wide 4V to 5.5V operating voltage.
  • Low 35mOhm typical on-resistance.
  • Includes over current and over temperature protection.

NX5P3363UKZ Applications

  • Ideal for USB power management.
  • Suitable for portable electronic devices.
  • Used in power distribution circuits.
  • Provides controlled power switching.

NX5P3363UKZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the NX5P3363UKZ?

4V to 5.5V.

What is the output current capability?

3.3A continuous.

What package does the NX5P3363UKZ come in?

WLCSP-16.

What is the operating temperature range?

-40°C to 85°C.

What fault protections are included?

Over current, over temperature, reverse current.

What is the typical on-resistance?

35 milliohms.

What is the mounting style?

Surface mount (SMD/SMT).
