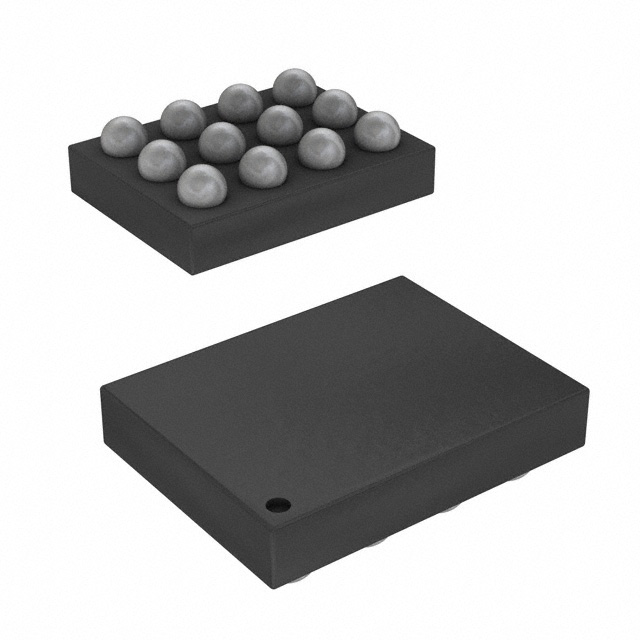

NX5P3090UKZ The NX5P3090UKZ is a high side power switch from NXP Semiconductors. It features a 3.3A current limit, 2.5V to 5.5V supply voltage, and 34mOhm typical on-resistance.
Mfr Part #:

NX5P3090UKZ

Available from 2 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NX5P3090UKZ is a high side power switch from NXP Semiconductors. It features a 3.3A current limit, 2.5V to 5.5V supply voltage, and 34mOhm typical on-resistance.
✓ Total Stock: 1,570 pcs
$ Price Range: $0.32

NX5P3090UKZ Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,570 pcs
On Request
1570 pcs On Request 1 On Request On Request On Request On Request On Request
Kinova ✓
Non-Authorised Inventory information
On Request
On Request
On Request On Request 1 On Request On Request On Request On Request 2026-04-21 02:16:25
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NX5P3090UKZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
ESD Protection
Fault Protection
Features
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Current
Ratio
Rds On (Typ)
Supplier Device Package
Switch Type
Voltage
View Similar Products (0)

NX5P3090UKZ Description

Short technical summary and product information.

The NX5P3090UKZ is a single-output high side power switch designed for load switching applications. It operates from a supply voltage range of 2.5V to 5.5V and supports a continuous output current of 3.3A. The typical on-resistance is 34mOhm, with a maximum of 46mOhm, ensuring low power dissipation.



Fault protection includes adjustable current limiting, over-temperature shutdown, reverse current blocking, and undervoltage lockout (UVLO). The device also features robust surge protection per IEC61000-4-5 exceeding ±80V on VBUS and ESD protection of 8kV contact discharge on VBUS per IEC61000-4-2.



The NX5P3090UKZ is housed in a 12-bump WLCSP package, suitable for space-constrained designs. It operates over an ambient temperature range of -40°C to 85°C, making it suitable for industrial and consumer applications.

NX5P3090UKZ Quick Information

Product Type: Power Switch IC
Canonical Name: NX5P3090UKZ
Subcategory: Power Distribution Switch

NX5P3090UKZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NX5P3090UKZ Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

NX5P3090UKZ Features

  • High side power switch with 3.3A current limit.
  • Operates from 2.5V to 5.5V supply.
  • Typical on-resistance of 34 milliohms.
  • Includes over-temperature and reverse current protection.
  • IEC61000-4-5 surge protection up to ±80V.

NX5P3090UKZ Applications

  • Used in USB power distribution applications.
  • Suitable for portable device power management.
  • Ideal for load switching in battery-powered systems.
  • Applicable in industrial control with wide temperature range.

NX5P3090UKZ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the NX5P3090UKZ?

The operating supply voltage range is 2.5V to 5.5V.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What is the maximum output current?

The maximum output current is 3.3A.

What fault protections are included?

Fault protections include adjustable current limiting, over-temperature shutdown, reverse current blocking, and undervoltage lockout (UVLO).

What surge protection does the device offer?

Surge protection per IEC61000-4-5 exceeds ±80V on VBUS.

What is the typical on-resistance?

The typical on-resistance is 34mOhm, with a maximum of 46mOhm.
