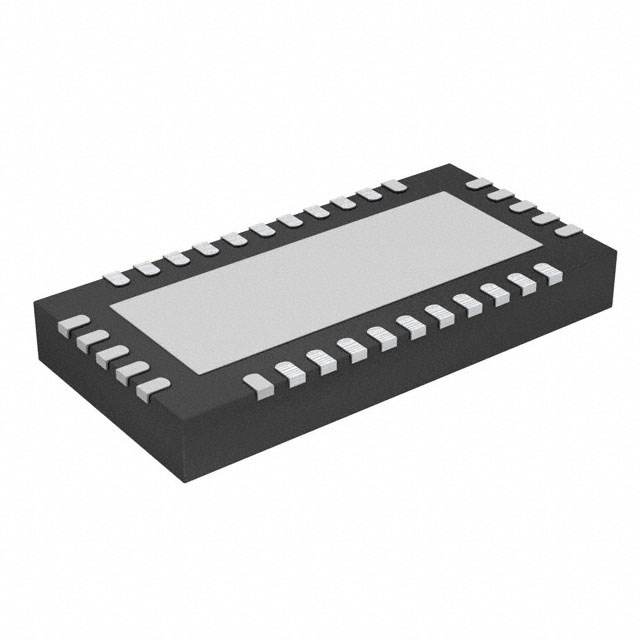

The NX5DV715HF,118 is a dual supply 1-to-2 VGA switch designed by NXP Semiconductors. This component integrates high-bandwidth SPDT switches with level-translating buffers and switches to manage input RGB, H-Sync, V-Sync, and DDC signals across two output channels.
Key electrical characteristics include a low typical ON resistance of 4 Ohms and a low typical ON capacitance of 12 pF, with a low output skew of 50 ps. It operates over a wide temperature range of -40°C to +85°C and supports a voltage range of 2V to 5.5V. The device also features low power consumption, typically less than 2 µA.
ESD protection is robust, with HBM exceeding 4 kV, MM exceeding 200 V, CDM exceeding 1000 V, and IEC61000-4-2 contact discharge exceeding 4 kV for I/Os. The NX5DV715HF,118 is housed in a 32-WFQFN exposed pad package and is designed for surface mounting.
Applications for this VGA switch include notebook computers, docking stations, digital projectors, computer monitors, servers, and storage systems. Its ability to handle RGB signals and level translation makes it a versatile component for video signal management.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical ON resistance is 4 Ohms.
The typical ON capacitance is 12 pF.
The operating temperature range is -40°C to 85°C.
The operating voltage range is 2V to 5.5V.
It is supplied in a 32-WFQFN exposed pad package.
It switches 2 channels.
HBM ESD protection exceeds 4 kV.
