Mfr Part #:

NX5032SD-20MHZ-STD-CSY-1

Name: NX5032SD-20MHZ-STD-CSY-1
Brand: NDK America, Inc.
SKU: NX5032SD-20MHZ-STD-CSY-1

Mfr Name: NDK America, Inc.

Description:

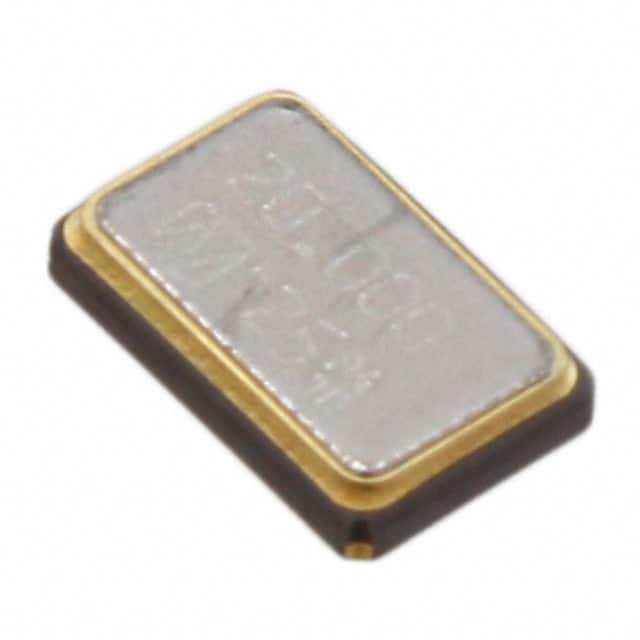

CRYSTAL 20.0000MHZ 12PF SMD

Stock on Request

NX5032SD-20MHZ-STD-CSY-1 Description

Short technical summary and product information.

CRYSTAL 20.0000MHZ 12PF SMD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Crystals
Manufacturer Name	NDK America, Inc.
ESR (Equivalent Series Resistance)	80 Ω
Frequency	20 MHz
Frequency Stability	±50ppm
Frequency Tolerance	±15ppm
Height	0.039" (1.00mm)
Load Capacitance	12pF
Mounting Type	Surface Mount
Operating Mode	Fundamental
Operating Temperature	-40°C ~ 125°C
Ratings	AEC-Q200
Size	0.193" L x 0.122" W (4.90mm x 3.10mm)
Type	MHz Crystal
