| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,179 pcs
|
1179 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Drive Level (Maximum) | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Width |

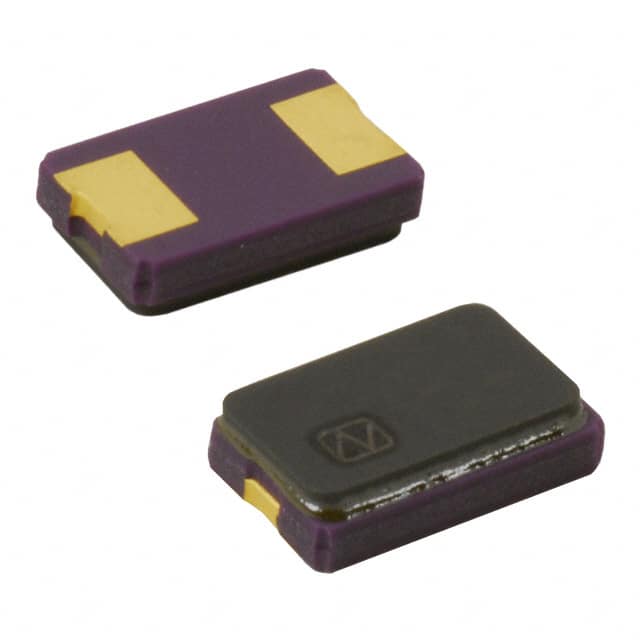

The NX5032GA-16.000000MHZ-LN-CD-1 is a 16 MHz quartz crystal manufactured by NDK America, Inc. It operates in fundamental mode with a maximum ESR of 120 Ω. The crystal offers a frequency tolerance of ±50ppm and frequency stability of ±50ppm over the operating temperature range of -10°C to 70°C. It requires a load capacitance of 8pF. The maximum drive level is 500 μW. This crystal is housed in a 2-SMD, no lead package measuring 5.00mm x 3.20mm x 1.50mm, suitable for surface mount assembly. The storage temperature range is -40°C to +85°C. It is intended for use in timing and clock generation applications in consumer and industrial electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
| 10+ | $0.51 | $0.51 |
| 200+ | $0.18 | $0.18 |
| 500+ | $0.18 | $0.18 |
| 1,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 MHz.
±50 ppm.
8 pF.
120 Ω.
-10°C to 70°C.
2-SMD, No Lead.
Listed as RoHS3 Compliant, but this compliance data is unverified and should be confirmed with the manufacturer.
