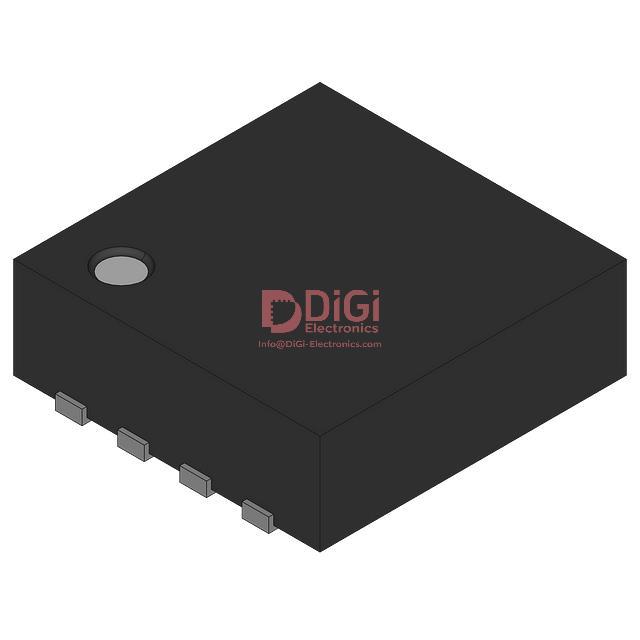

NX3L2G384GM125 The NXP Semiconductors NX3L2G384GM125 is a 2-circuit analog switch with SPST-NC configuration. It offers a low on-state resistance of 750mOhm and operates within a 1.4V to 4.3V supply range.
Mfr Part #:

NX3L2G384GM125

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors NX3L2G384GM125 is a 2-circuit analog switch with SPST-NC configuration. It offers a low on-state resistance of 750mOhm and operates within a 1.4V to 4.3V supply range.
✓ Total Stock: 15 pcs
$ Price Range: $0.75

NX3L2G384GM125 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NX3L2G384GM125 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Circuits
Switch Circuit
Tape & Reel
View Similar Products (0)

NX3L2G384GM125 Description

Short technical summary and product information.

The NXP Semiconductors NX3L2G384GM125 is a specialized integrated circuit designed for analog switching applications. It features two SPST-NC (Single Pole Single Throw - Normally Closed) circuits, enabling efficient signal routing.



Key electrical specifications include a maximum on-state resistance of 750mOhm and a channel-to-channel matching of 20mOhm. The device supports a single supply voltage ranging from 1.4V to 4.3V. It has a switch time of 24ns turn-on and 7ns turn-off, with a -3dB bandwidth of 60MHz, making it suitable for various signal processing tasks.



This analog switch is housed in an 8-XQFNU package, designed for surface mounting. The component is supplied on tape and reel, facilitating automated assembly processes. Its compact size and surface-mount capability make it ideal for space-constrained electronic designs.

NX3L2G384GM125 Quick Information

Product Type: Analog Switch
Series: NX3L2G384
Canonical Name: NX3L2G384GM125 Analog Switch
Subcategory: Specialized ICs

NX3L2G384GM125 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NX3L2G384GM125 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

NX3L2G384GM125 Features

  • Dual SPST-NC analog switch circuits.
  • Low 750mOhm maximum on-state resistance.
  • Wide 1.4V to 4.3V single supply voltage.
  • Fast 24ns turn-on and 7ns turn-off times.
  • 60MHz -3dB bandwidth for signal integrity.

NX3L2G384GM125 Applications

  • Ideal for signal routing applications.
  • Suitable for space-constrained designs.
  • Used in portable electronic devices.
  • Effective in low-voltage systems.
