| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Channel | |
| Channel Capacitance (CS(off), CD(off)) | |
| Charge Injection | |
| Crosstalk | |
| Current | |
| Lead Spacing | |
| Mounting Type | |
| Multiplexer | |
| Number of Circuits | |
| On | |
| Operating Temperature | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Circuit | |
| Switch Time (Ton, Toff) (Max) | |
| Tape & Reel | |
| Voltage |
The NX3L2267GM,115 from NXP Semiconductors is a dual single-pole double-throw (SPDT) analog switch. It is designed for use as a 2:1 multiplexer or demultiplexer.
This device supports a wide supply voltage range from 1.4 V to 4.3 V. It offers a low typical on-resistance of 750 mOhm, with specific values provided at different supply voltages, such as 1.65 Ohm at 1.4V and 0.50 Ohm at 4.3V. The switch features break-before-make switching and has a bandwidth of 60 MHz.

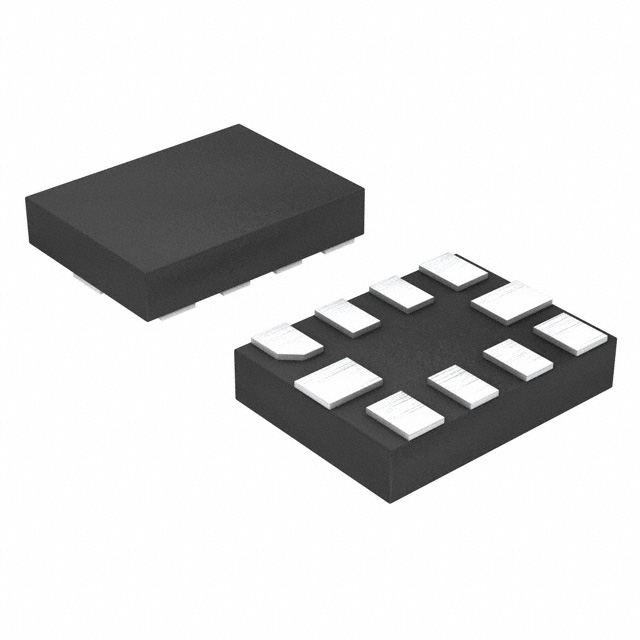

The NX3L2267GM,115 operates within a temperature range of -40°C to +125°C. It is housed in a 10-XQFN surface-mount package.
Key electrical characteristics include a charge injection of 37 pC and channel capacitance of 35 pF. The switch also exhibits a crosstalk of -90 dB at 100 kHz.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 1.4 V to 4.3 V.
The typical on-resistance is 750 mOhm.
The operating temperature range is -40°C to +125°C.
It is supplied in a 10-XQFN package.
