| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
135,000 pcs
|
135000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Crosstalk | |
| Features | |
| Latch-up Performance | |
| Mounting Type | |
| Number of Channels | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Circuit | |
| Voltage |
The NX3DV642GU,115 from NXP Semiconductors is a high-speed triple-pole double-throw (3PDT) differential signal switch designed for applications requiring switching between MIPI devices. It is optimized for switching between two MIPI devices, such as cameras or LCD displays, and on-board multimedia application processors.
Key electrical specifications include a supply voltage range of 2.65 V to 4.3 V and a typical ON resistance of 7.5 Ω. The device boasts a typical bandwidth of 950 MHz, making it suitable for high-frequency signals. It also features low crosstalk of -55 dB at 100 MHz and a typical ON capacitance of 8.4 pF.

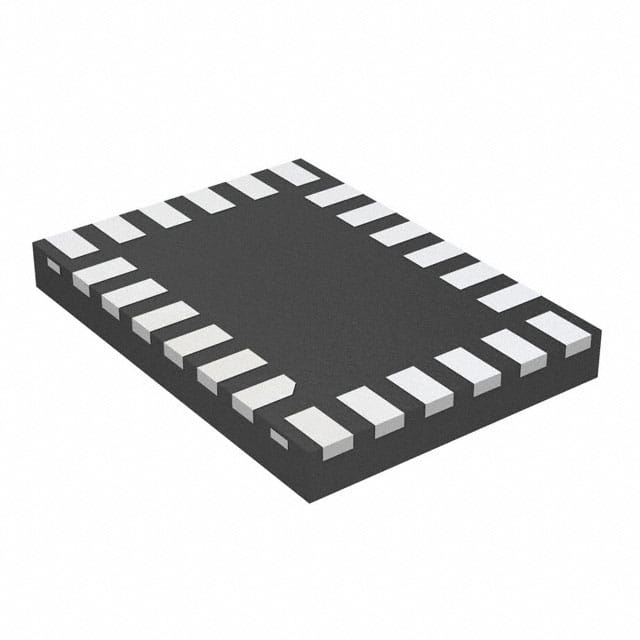

This switch operates within a temperature range of -40 °C to +85 °C. It is supplied in a 24-XQFN surface mount package with dimensions of 2.5 x 3.4 mm. The device supports break-before-make switching and offers robust ESD protection.
Applications include dual camera and dual LCD setups in mobile phones and digital cameras. The NX3DV642GU,115 is compatible with MIPI requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2.65 V to 4.3 V.
The typical bandwidth is 950 MHz.
The operating temperature range is -40 °C to +85 °C.
It is supplied in a 24-XQFN surface mount package.
It is used in dual camera and dual LCD applications for cell phones, and for digital camera displays and viewfinders.
