NX3DV42GU10X The NX3DV42GU10X is a dual high-speed USB 2.0 analog switch from NXP Semiconductors. It operates with a supply voltage range of 3.0 V to 4.3 V and offers a typical bandwidth of 950 MHz.
Mfr Part #:

NX3DV42GU10X

Available from 2 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NX3DV42GU10X is a dual high-speed USB 2.0 analog switch from NXP Semiconductors. It operates with a supply voltage range of 3.0 V to 4.3 V and offers a typical bandwidth of 950 MHz.
✓ Total Stock: 9,732 pcs
$ Price Range: $1.20

NX3DV42GU10X Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
8,000 pcs
On Request
8000 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
1,732 pcs
On Request
1732 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NX3DV42GU10X Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Crosstalk
Features
Latch-up Performance
Mounting Type
Number of Channels
On
Operating Temperature
Supplier Device Package
Switch Circuit
Tape & Reel
Voltage
View Similar Products (0)

NX3DV42GU10X Description

Short technical summary and product information.

The NX3DV42GU10X is a double-pole double-throw (DPDT) analog switch designed for multiplexer/demultiplexer applications. It supports high-speed differential signals, including USB 2.0 at 480 Mb/s, with a wide bandwidth of 950 MHz and low crosstalk.



Key electrical specifications include a typical ON resistance of 4 Ohms and a typical ON capacitance of 7.3 pF. The device operates within a supply voltage range of 3.0 V to 4.3 V and is specified for an operating temperature range of -40°C to +125°C.

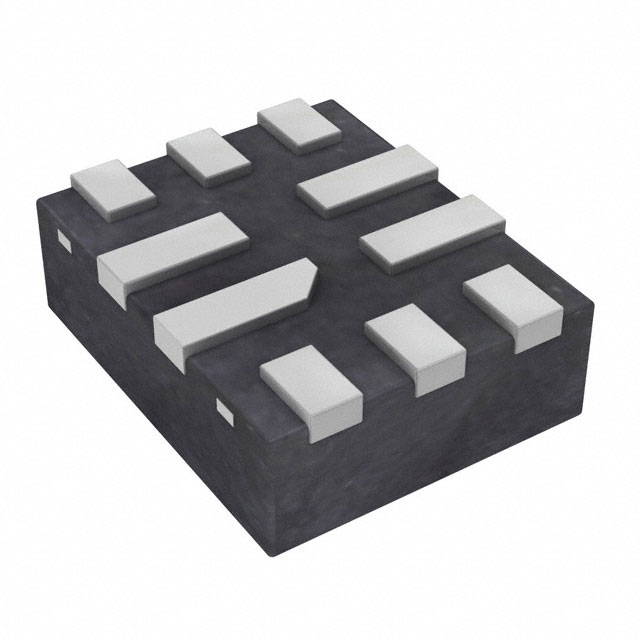

This analog switch features break-before-make switching and is housed in a 10-XFQFN package suitable for surface mounting. Its design includes Schmitt trigger action for tolerance to slower input rise and fall times, enhancing signal integrity in demanding applications.



Applications for the NX3DV42GU10X include mobile devices like cell phones and PDAs, digital cameras, notebooks, LCD monitors, TVs, and set-top boxes where high-speed signal switching is required.

NX3DV42GU10X Quick Information

Product Type: Analog Switch
Canonical Name: NX3DV42GU10X Dual high-speed USB 2.0 double-pole double-throw analog switch
Subcategory: Special Purpose

NX3DV42GU10X Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NX3DV42GU10X Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

NX3DV42GU10X Features

  • Dual high-speed USB 2.0 analog switch.
  • Wide 950 MHz bandwidth for high-speed signals.
  • Low 4 Ohm typical ON resistance.
  • Operates from 3.0 V to 4.3 V supply.
  • Surface mount 10-XFQFN package.

NX3DV42GU10X Applications

  • Suitable for cell phones and notebooks.
  • Used in LCD monitors and TVs.
  • Ideal for digital cameras and PDAs.
  • Supports high-speed USB 2.0 data.

NX3DV42GU10X FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the NX3DV42GU10X?

The supply voltage range is 3.0 V to 4.3 V.

What is the typical ON resistance of the NX3DV42GU10X?

The typical ON resistance is 4 Ohms.

What is the bandwidth of the NX3DV42GU10X?

The typical bandwidth is 950 MHz.

What is the operating temperature range for this analog switch?

The operating temperature range is -40°C to +125°C.

What package type is the NX3DV42GU10X supplied in?

It is supplied in a 10-XFQFN package.

Is the NX3DV42GU10X RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the NX3DV42GU10X?

The Moisture Sensitivity Level is 1 Unlimited.
