| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
955 pcs
|
955 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Bandwidth | |
| Features | |
| Industrial Grade | |
| Latch-up Performance | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Multiplexer | |
| Number of Channels | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Voltage |
The NXP Semiconductors NX3DV221TKX is a high-speed USB 2.0 switch designed for consumer electronics such as cell phones, digital cameras, and notebooks. With a wide bandwidth of 1 GHz, it ensures minimal signal distortion for high-speed data transmission.
This switch operates within a supply voltage range of 2.3 V to 3.6 V and can handle switch voltages up to 5.5 V. It offers low ON resistance of typically 7 Ohms and a typical ON-state capacitance of 6 pF. The device is bidirectional and provides excellent channel-to-channel noise isolation, making it compatible with USB 2.0 standards at 480 Mbps.
Key features include low power consumption in standby mode and robust ESD protection exceeding 8000 V (HBM). The NX3DV221TKX is specified for operation across a temperature range of -40 °C to +85 °C.

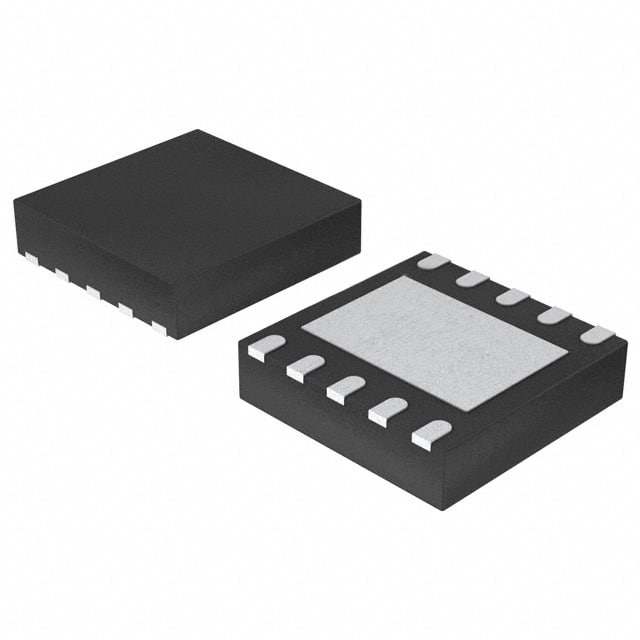

Packaged in a 10-HVSON (3x3) surface-mount form factor, this switch is suitable for space-constrained designs. Its applications include routing signals for USB 1.0, 1.1, and 2.0 interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2.3 V to 3.6 V.
The operating temperature range is -40°C to +85°C.
The NX3DV221TKX is supplied in a 10-HVSON (3x3) package.
The bandwidth is 1 GHz.
It routes signals for USB 1.0, 1.1, and 2.0.
