| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22,100 pcs
|
22100 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Ratings | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Width |

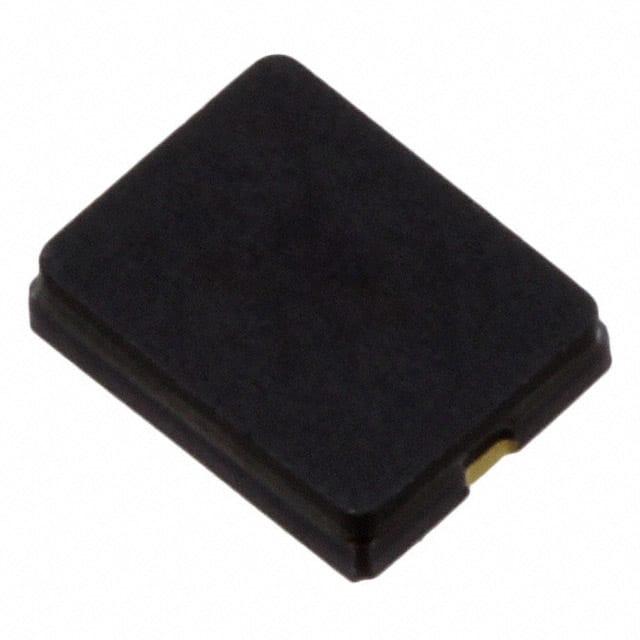

The NDK America, Inc. NX3225GB-20MHZ-STD-CRA-2 is a MHz Crystal designed for electronic applications. It operates at a frequency of 20 MHz with a load capacitance of 8pF and a frequency tolerance of ±50ppm. The crystal has an equivalent series resistance of 100 Ω and a frequency stability of ±150ppm.
This component is suitable for a wide operating temperature range of -40°C to 150°C. It is housed in a compact 2-SMD, No Lead package with dimensions of 3.20mm in length, 2.50mm in width, and 0.90mm in height. The mounting type is Surface Mount, making it ideal for integration into various PCB designs.
The NX3225GB-20MHZ-STD-CRA-2 is rated AEC-Q200, indicating its suitability for automotive applications. It complies with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency of this crystal is 20 MHz.
The load capacitance is 8pF.
The frequency tolerance is ±50ppm.
The operating temperature range is -40°C to 150°C.
It is in a 2-SMD, No Lead package.
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
