| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Width |

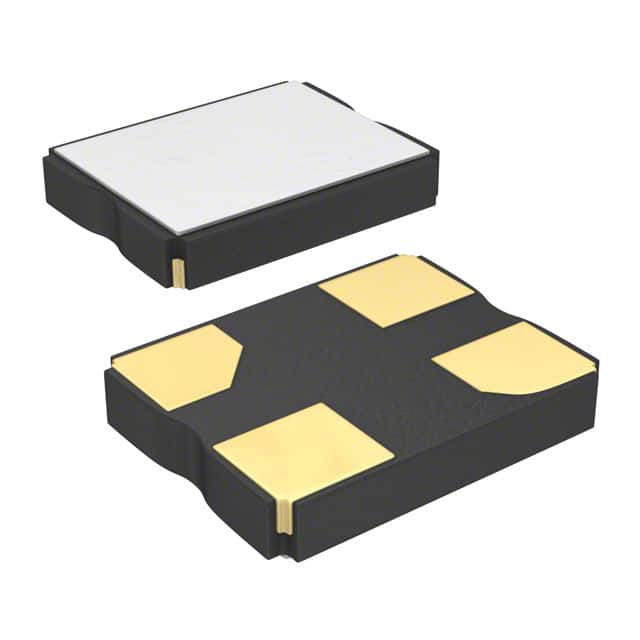

This NX2520SG-19.2M-STD-CTX-1 is a MHz Crystal manufactured by NDK America, Inc. It operates at a standard frequency of 19.2 MHz with a frequency tolerance of ±10ppm and a load capacitance of 7pF. The crystal is designed for a wide operating temperature range of -30°C to 85°C.
This component is housed in a 4-SMD, No Lead package with a surface mount type. Its dimensions are 2.50mm in length and 2.00mm in width, with a height of 1.00mm. The product is suitable for applications requiring low phase noise, low voltage, low current consumption, and high stability, commonly found in small digital products and wireless communication systems.
The crystal is manufactured using lead-free processes and is packaged in tape and reel for automated assembly. It is designed to function reliably even under harsh environmental conditions. NDK America, Inc. is a professional manufacturer of piezoelectric quartz crystal resonators and related components, founded in 1948.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -30°C to 85°C.
The frequency tolerance is ±10ppm.
The load capacitance is 7pF.
It is in a 4-SMD, No Lead package.
Yes, it is RoHS3 Compliant.
