NX20P5090UKAZ High side power distribution switch from NXP Semiconductors. Operates from 2.5V to 20V, delivers up to 5A continuous current with typical 30mOhm on-resistance.
Mfr Part #:

NX20P5090UKAZ

Available from 3 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
High side power distribution switch from NXP Semiconductors. Operates from 2.5V to 20V, delivers up to 5A continuous current with typical 30mOhm on-resistance.
✓ Total Stock: 9,368 pcs
$ Price Range: $0.32

NX20P5090UKAZ Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
Smaxon Electronics ✓
Non-Authorised Inventory information
2,650 pcs
On Request
2650 pcs On Request 1 On Request On Request 20+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,718 pcs
On Request
1718 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NX20P5090UKAZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Current
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Supplier Package
Supply Voltage
Switch Type
Type
Voltage
View Similar Products (0)

NX20P5090UKAZ Description

Short technical summary and product information.

The NX20P5090UKAZ is a high side power distribution switch from NXP Semiconductors designed for applications requiring robust power switching and protection. It operates over a supply voltage range of 2.5V to 20V and can deliver a continuous current of up to 5A. The device features a typical on-resistance of 30mOhm, minimizing power loss and heat dissipation.



This switch integrates surge and ESD protection exceeding IEC61000-4-5 and IEC61000-4-2 standards. On the VBUS pin, it withstands ±90V surge without an external capacitor and ±100V with a 22uF capacitor. ESD protection exceeds 8kV contact discharge per IEC61000-4-2 and 2kV per HBM Class 2.

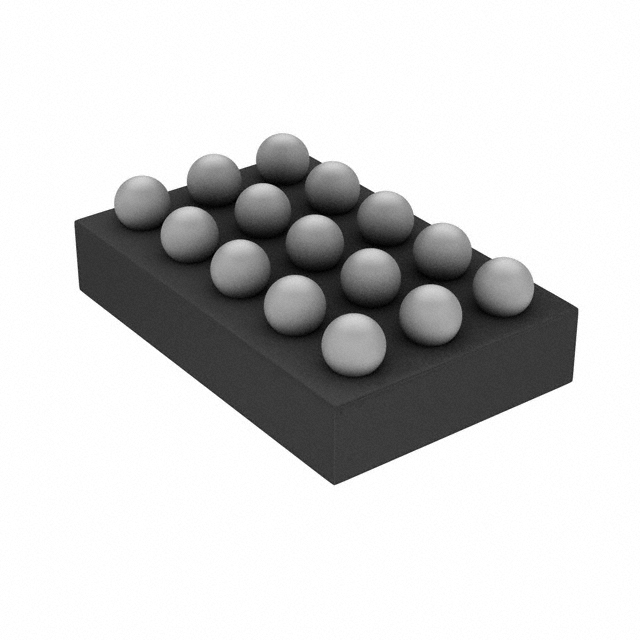

The NX20P5090UKAZ is housed in a compact 15-WLCSP (2.56x1.54mm) package and supports surface mount assembly. It is specified for operation over the industrial temperature range of -40°C to 85°C.
