| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,500 pcs
|
10500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The ON Semiconductor NVTFS5824NLTAG is a single N-Channel Power MOSFET designed for efficient power management. It offers a drain-to-source voltage (Vdss) of 60V and a low on-resistance (Rds(on)) of 20.5mOhm at a gate-source voltage (Vgs) of 10V and a drain current (Id) of 10A. This MOSFET can handle a continuous drain current of up to 37A at 25°C case temperature.
With a maximum power dissipation of 57W at 25°C case temperature and 3.2W at 25°C ambient temperature, it is suitable for various power applications. The device operates within a wide temperature range of -55°C to 175°C.

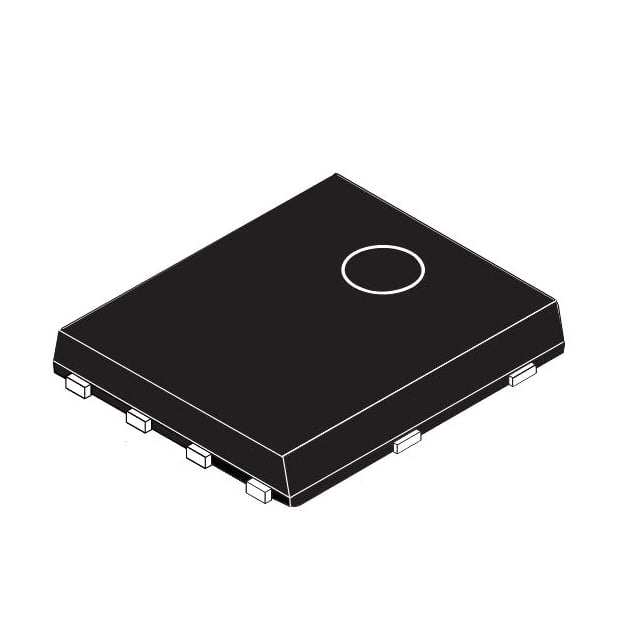

Packaged in an 8-WDFN (3.3x3.3mm) surface-mount package, the NVTFS5824NLTAG is designed for compact applications. It features a gate-to-source voltage range of ±20V and an input capacitance of 850pF at 25V. The device is AEC-Q101 qualified and RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-to-source voltage (Vdss) is 60V.
The maximum on-resistance is 20.5mOhm at 10A, 10V.
The continuous drain current is 37A at 25°C case temperature.
The operating temperature range is -55°C to 175°C.
It is in an 8-PowerWDFN package.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
