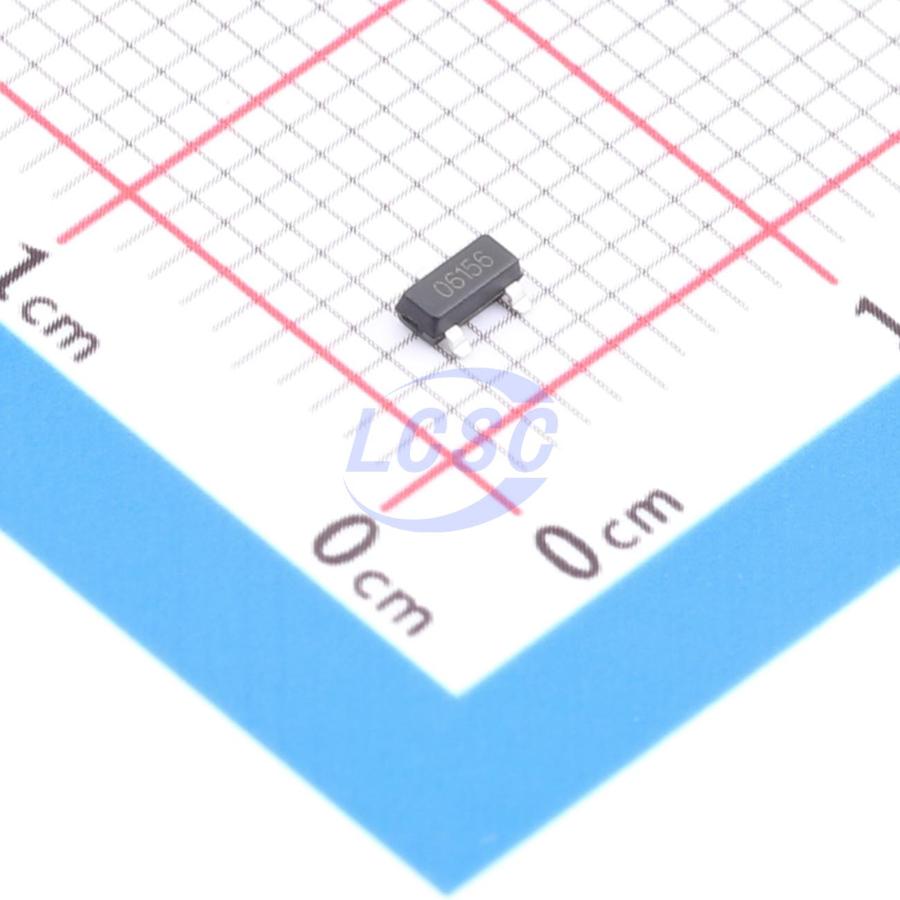

NVR5124PLT1G The ON Semiconductor NVR5124PLT1G is a P-Channel MOSFET featuring Trench Technology. It is designed for surface mount applications and comes in a SOT-23 package.
Mfr Part #:

NVR5124PLT1G

Available from 6 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NVR5124PLT1G is a P-Channel MOSFET featuring Trench Technology. It is designed for surface mount applications and comes in a SOT-23 package.
✓ Total Stock: 388,868 pcs
$ Price Range: $0.99

NVR5124PLT1G Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NVR5124PLT1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

NVR5124PLT1G Description

Short technical summary and product information.

The ON Semiconductor NVR5124PLT1G is a P-Channel MOSFET utilizing Trench Technology. It offers a Drain-to-Source Voltage (Vdss) of -60V and a continuous drain current of 1.1A at 25°C ambient temperature. The device has a maximum power dissipation of 470mW at 25°C.



This MOSFET is suitable for surface mount applications and is supplied in a compact SOT-23-3 package (TO-236-3, SC-59). The operating temperature range is -55°C to 150°C (TJ). It features a gate threshold voltage (Vgs(th)) of 2.5V maximum at 250µA and an on-resistance (Rds On) of 230mOhm maximum at 3A and 10V gate drive.



The NVR5124PLT1G is qualified for automotive and other applications requiring unique site and control change requirements, being AEC-Q101 qualified and PPAP capable. It is also Pb-Free and RoHS Compliant.

NVR5124PLT1G Quick Information

Product Type: MOSFET
Series: NVR5124PLT1G
Canonical Name: NVR5124PLT1G P-Channel MOSFET
Subcategory: P-Channel

NVR5124PLT1G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NVR5124PLT1G Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NVR5124PLT1G Features

  • P-Channel MOSFET with Trench Technology.
  • Rated for -60V Drain-to-Source Voltage.
  • Handles 1.1A continuous drain current.
  • Compact SOT-23 surface mount package.
  • AEC-Q101 Qualified for automotive applications.

NVR5124PLT1G Applications

  • Suitable for automotive applications.
  • Ideal for power switching circuits.
  • Used in general purpose electronics.
  • Efficient for low voltage designs.

NVR5124PLT1G FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum Drain-to-Source Voltage (Vdss) for the NVR5124PLT1G?

-60 V

What is the continuous drain current rating for the NVR5124PLT1G?

1.1 A at 25°C

What is the package type for the NVR5124PLT1G MOSFET?

SOT-23-3 (TO-236-3, SC-59)

What is the operating temperature range of the NVR5124PLT1G?

-55°C to 150°C

Is the NVR5124PLT1G RoHS compliant?

Yes, it is RoHS3 Compliant.
