| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
87,019 pcs
|
87019 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The NVMYS6D2N06CLTWG is a power MOSFET from ON Semiconductor designed for efficient power management applications. This N-channel device features a maximum drain-source voltage of 60V and a low on-resistance of 6.1mOhm at 10V gate-source voltage, minimizing conduction losses.
With a continuous drain current rating of 71A at a case temperature of 25°C and 3.6W power dissipation at ambient temperature, it is suitable for demanding applications. The MOSFET operates within a wide temperature range of -55°C to 175°C.

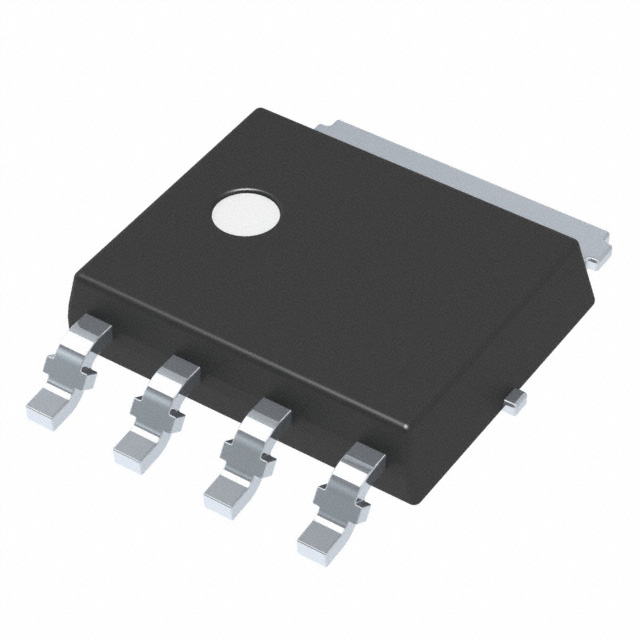

Packaged in a compact 4-LFPAK (5x6 mm) surface-mount package, the NVMYS6D2N06CLTWG is designed for space-constrained applications. Its features include low gate charge and capacitance, contributing to reduced driver losses. The device is AEC-Q101 qualified and PPAP capable, indicating its suitability for automotive and high-reliability applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vds) is 60V.
The maximum on-resistance is 6.1mOhm at a gate-source voltage of 10V and a drain current of 35A.
The continuous drain current is 71A when measured at the case temperature of 25°C, and 17A when measured at the ambient temperature of 25°C.
The operating junction and storage temperature range is from -55°C to +175°C.
It is supplied in the LFPAK4 (5x6 mm) package, which is a 4-lead LFPAK surface-mount type.
Yes, the device is RoHS3 compliant and also Pb-Free.
