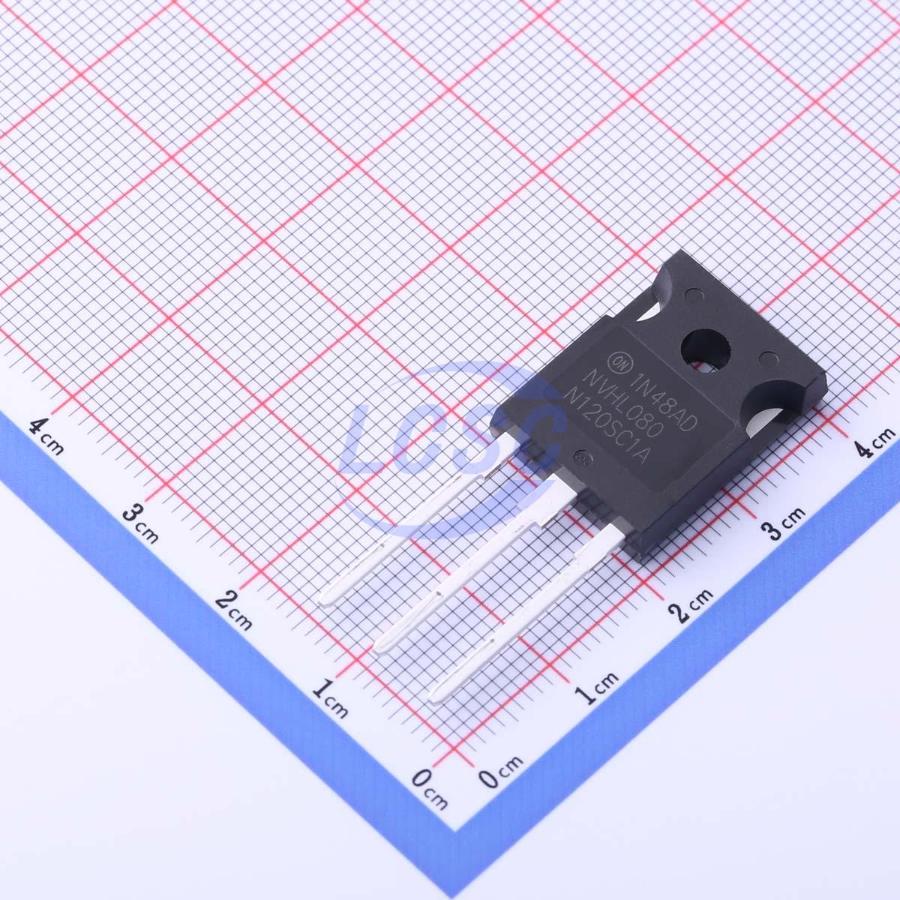

NVHL080N120SC1A The On Semiconductor NVHL080N120SC1A is a Silicon Carbide N-Channel MOSFET with a 1200V drain-to-source voltage and 31A continuous current rating. It is housed in a TO-247-3 package.
Mfr Part #:

NVHL080N120SC1A

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NVHL080N120SC1A is a Silicon Carbide N-Channel MOSFET with a 1200V drain-to-source voltage and 31A continuous current rating. It is housed in a TO-247-3 package.
✓ Total Stock: 34,139 pcs
$ Price Range: $9.97

NVHL080N120SC1A Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
30,600 pcs
On Request
30600 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
3,539 pcs
On Request
3539 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NVHL080N120SC1A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Industrial Grade
Input Capacitance (Ciss) (Max) @ Vds
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

NVHL080N120SC1A Description

Short technical summary and product information.

The NVHL080N120SC1A from On Semiconductor is a high-performance Silicon Carbide (SiC) N-Channel MOSFET designed for demanding applications. It features a maximum drain-to-source voltage (Vds) of 1200V and a continuous drain current of 31A at 25°C case temperature.



Key electrical characteristics include a typical on-resistance (Rds(on)) of 80 mOhm at 20A and 20V, and a low gate charge (Qg) of 56 nC. The device operates over a wide temperature range from -55°C to 175°C.



This MOSFET is suitable for applications such as automotive on-board chargers and DC-DC converters for electric and hybrid vehicles. It is AEC-Q101 qualified and comes in a TO-247-3 package suitable for through-hole mounting.



The device is Halide Free and Pb-Free compliant, meeting modern environmental standards.

NVHL080N120SC1A Quick Information

Product Type: MOSFET
Series: NVHL080N120SC1A
Canonical Name: NVHL080N120SC1A Silicon Carbide N-Channel MOSFET
Subcategory: Single

NVHL080N120SC1A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free 2LI

NVHL080N120SC1A Estimated Pricing

Qty Low High
1+ $9.97 $9.97

Estimated market price range - modelled values for guidance only, not live distributor offers.

NVHL080N120SC1A Features

  • 1200V drain-to-source voltage rating.
  • 31A continuous drain current.
  • 80 mOhm typical on-resistance.
  • Low gate charge of 56 nC.
  • AEC-Q101 qualified.

NVHL080N120SC1A Applications

  • Suitable for high-voltage automotive power supplies.
  • Ideal for EV/HEV DC-DC converters.
  • Used in automotive onboard chargers.
  • Applicable in high-voltage industrial motor drives.
  • Suitable for power switching in harsh environments.

NVHL080N120SC1A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage for the NVHL080N120SC1A?

The maximum drain-to-source voltage (Vds) is 1200 V.

What is the typical on-resistance of the NVHL080N120SC1A?

The typical on-resistance (Rds(on)) is 80 mOhm at 20A and 20V.

What is the continuous drain current rating?

The continuous drain current is 31A at a case temperature of 25°C.

What is the operating temperature range?

The operating junction and storage temperature range is -55°C to 175°C.

What package type is the NVHL080N120SC1A supplied in?

The device is supplied in a TO-247-3 package.

Is the NVHL080N120SC1A RoHS compliant?

Yes, the device is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level (MSL) is 1.
