| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,500 pcs
|
13500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Voltage | |
| Lead Style | |
| SVHC Present | |
| Storage Temperature |

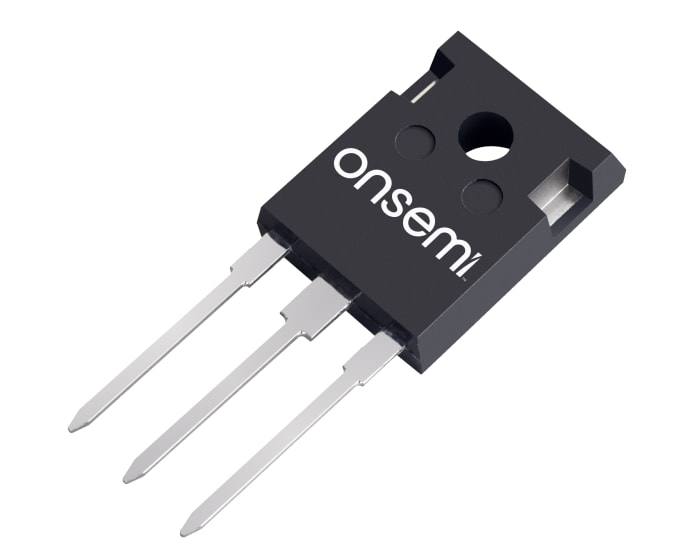

The On Semiconductor NVHL070N120M3S is an N-Channel MOSFET belonging to the NVHL series. This component is designed for robust performance with a maximum drain-source voltage (Vds) of 1200V and a maximum continuous drain current (Id) of 34A. It offers a maximum power dissipation (Pd) of 160W, making it suitable for demanding power applications.
The MOSFET operates with an enhancement channel mode and has a maximum drain-source on-resistance (Rds) of 65mΩ. The operating temperature range spans from a minimum of -55°C to a maximum of 175°C, ensuring reliability across various environmental conditions. It is compliant with the AEC-Q101 automotive standard.
Packaged in a TO-247-3L through-hole configuration, this MOSFET is designed for ease of mounting and integration into electronic circuits. The typical gate charge (Qg) is 57nC at Vgs=10V, and it has a typical forward voltage (Vf) of 4.7V. This component is ideal for power switching and control applications where high voltage and current handling capabilities are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
TO-247-3L through-hole package.
-55°C to 175°C.
1200V.
34A.
65mΩ.
Yes, it is AEC-Q101 qualified.
160W.
