| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,650 pcs
|
7650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The NVHL050N65S3F from ON Semiconductor is a high-performance N-Channel MOSFET belonging to the SUPERFET III FRFET family. This device is designed for demanding power applications, offering a robust 650V drain-source breakdown voltage and a continuous drain current capability of 58A at a case temperature.
Key electrical characteristics include a low on-state resistance of 50mOhm at 29A and 10V gate-source voltage, and a maximum gate charge of 123nC. The MOSFET operates within a wide temperature range of -55°C to 150°C (TJ) and has a maximum power dissipation of 403W (Tc).

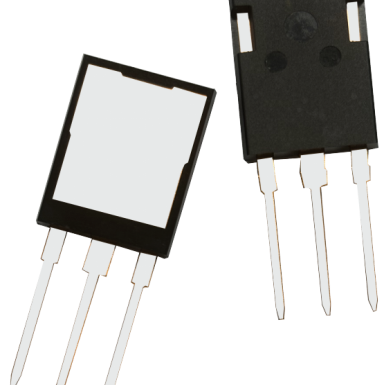

Packaged in a TO-247-3 configuration, the NVHL050N65S3F is suitable for through-hole mounting. Its technology is based on advanced Metal Oxide Semiconductor Field-Effect Transistor principles, ensuring efficient power switching.
This component is RoHS3 compliant, has an MSL rating of 1, and is REACH unaffected, making it suitable for various industrial and commercial applications where reliable power management is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source breakdown voltage is 650 V.
The continuous drain current is 58 A.
The maximum on-state resistance is 50 mOhm at 29A and 10V.
The operating temperature range is -55°C to 150°C.
This MOSFET is in a TO-247-3 package.
This component is mounted using the through-hole method.
