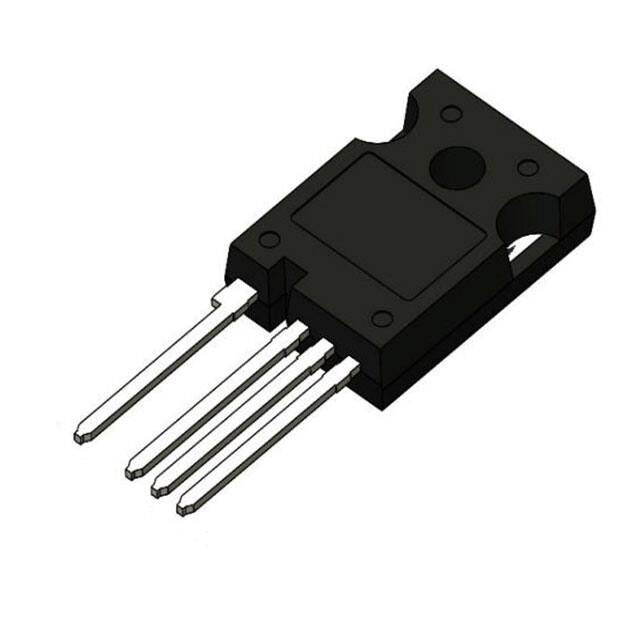

NVH4L060N090SC1 The NVH4L060N090SC1 is an N-Channel Silicon Carbide MOSFET from On Semiconductor. It offers a high drain-to-source voltage of 900V and a continuous drain current of 46A.
Mfr Part #:

NVH4L060N090SC1

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The NVH4L060N090SC1 is an N-Channel Silicon Carbide MOSFET from On Semiconductor. It offers a high drain-to-source voltage of 900V and a continuous drain current of 46A.
✓ Total Stock: 2,250 pcs
$ Price Range: $14.25

NVH4L060N090SC1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
2,250 pcs
On Request
2250 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NVH4L060N090SC1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Lead Spacing
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

NVH4L060N090SC1 Description

Short technical summary and product information.

The On Semiconductor NVH4L060N090SC1 is a high-performance N-Channel Silicon Carbide (SiC) MOSFET designed for demanding applications. It features a maximum drain-to-source voltage (Vdss) of 900V and a continuous drain current (Id) of 46A at 25°C case temperature. The device exhibits a low on-resistance (Rds(on)) of 84mOhm at 20A and 15V gate-source voltage, with a typical value of 43mOhm at 18V gate-source voltage.



With an operating temperature range of -55°C to 175°C, this MOSFET is suitable for challenging environments. It is housed in a TO-247-4L package, designed for through-hole mounting. Key electrical characteristics include a gate charge (Qg) of 87 nC at 15V and an input capacitance (Ciss) of 1770 pF at 450V.



Typical applications for the NVH4L060N090SC1 include automotive on-board chargers and DC-DC converters for electric and hybrid electric vehicles (EV/HEV). The device is AEC-Q101 qualified and PPAP capable, ensuring reliability for automotive use. It is also RoHS compliant with exemption 7a and Halide-free.

NVH4L060N090SC1 Quick Information

Product Type: MOSFET
Canonical Name: NVH4L060N090SC1 N-Channel Silicon Carbide MOSFET
Subcategory: Single FETs

NVH4L060N090SC1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NVH4L060N090SC1 Estimated Pricing

Qty Low High
1+ $14.25 $14.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

NVH4L060N090SC1 Features

  • 900V drain-to-source voltage rating.
  • 46A continuous drain current.
  • Low 84mOhm Rds(on) at 15V.
  • TO-247-4L through-hole package.
  • AEC-Q101 Qualified for automotive.

NVH4L060N090SC1 Applications

  • Suitable for automotive on-board chargers.
  • Ideal for EV/HEV DC-DC converters.
  • Used in high-voltage power switching applications.
  • Applicable in industrial motor control circuits.
  • Suitable for high-temperature power management.

NVH4L060N090SC1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage for the NVH4L060N090SC1?

The maximum drain-to-source voltage (Vdss) is 900 V.

What is the typical on-resistance of the NVH4L060N090SC1 at 15V gate drive?

The typical on-resistance (Rds(on)) is 60 mOhm at 20A drain current and 15V gate-source voltage.

What is the continuous drain current rating for the NVH4L060N090SC1?

The continuous drain current is 46A at a case temperature of 25°C.

What is the operating temperature range for this MOSFET?

The operating junction and storage temperature range is -55°C to 175°C.

What package type is the NVH4L060N090SC1 supplied in?

The device is supplied in a TO-247-4L package.

Is the NVH4L060N090SC1 RoHS compliant?

Yes, the device is RoHS3 Compliant.

What are the typical applications for the NVH4L060N090SC1?

Typical applications include automotive on-board chargers and automotive DC-DC converters for EV/HEV.
