| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
364 pcs
|
364 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

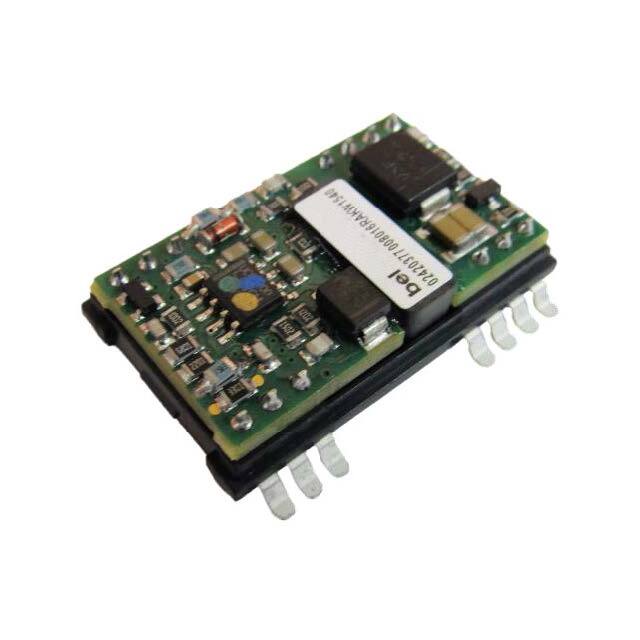

The NVD0.4YJJ-M6G is an isolated DC DC converter module from Bel Power Solutions, part of the NV series. It is designed to provide dual regulated outputs from a wide input voltage range.
This converter accepts an input voltage of 18V to 36V and delivers dual outputs of +15V and -15V, each rated for 200 mA, with a total output power of 6W. Typical efficiency is 84%, and output ripple and noise is 120 mV p-p. The module includes output overcurrent protection (OCP).
The converter is housed in a low-profile 24-SMD module with 14 leads, measuring 33.0 mm x 20.6 mm x 8.4 mm, and is designed for surface mount assembly. It operates over a temperature range of -40°C to 110°C.
The NVD0.4YJJ-M6G is suitable for ITE (commercial) applications. It is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 280+ | $90.97 | $90.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 18V to 36V.
The converter provides dual outputs: +15V and -15V.
It comes in a 24-SMD Module with 14 leads, surface mount.
-40°C to 110°C.
Yes, it is RoHS3 compliant.
84%.
Each output is rated for 200 mA.
