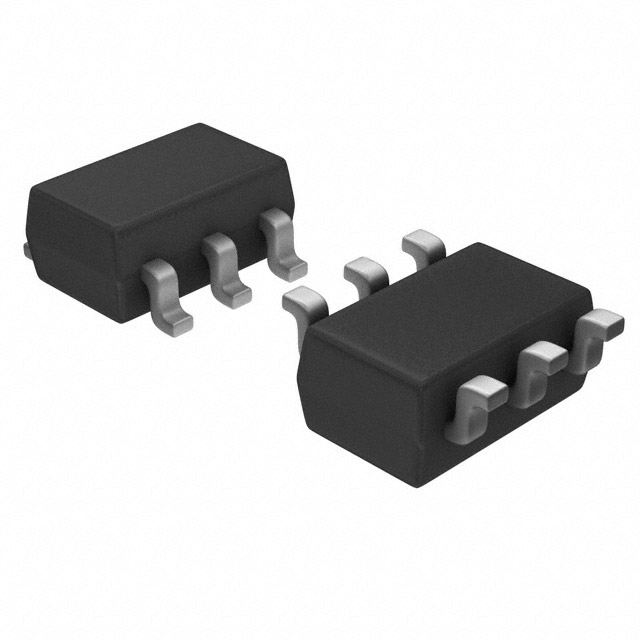

NVC6S5A354PLZT1G The NVC6S5A354PLZT1G is a P-Channel MOSFET from On Semiconductor. It offers a 60V drain-source voltage and 4A continuous current.
Mfr Part #:

NVC6S5A354PLZT1G

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The NVC6S5A354PLZT1G is a P-Channel MOSFET from On Semiconductor. It offers a 60V drain-source voltage and 4A continuous current.
✓ Total Stock: 93,314 pcs
$ Price Range: $0.99

NVC6S5A354PLZT1G Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
90,000 pcs
On Request
90000 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
3,314 pcs
On Request
3314 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NVC6S5A354PLZT1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

NVC6S5A354PLZT1G Description

Short technical summary and product information.

The NVC6S5A354PLZT1G is a P-Channel MOSFET manufactured by On Semiconductor. This component features a drain-to-source voltage (Vdss) of 60V and a continuous drain current (Id) of 4A at 25°C.



Key electrical characteristics include a maximum on-resistance (Rds On) of 100mOhm at 2A and 10V, a gate threshold voltage (Vgs(th)) of 2.6V at 1mA, and a maximum gate charge (Qg) of 14nC at 10V. The device supports a gate-source voltage (Vgs) limit of ±20V and has an input capacitance (Ciss) of 600pF at 20V.



This MOSFET is designed for surface mount applications and comes in a SOT-23-6 Thin, TSOT-23-6 package, specifically the 6-CPH supplier device package. It operates within a temperature range of -55°C to 175°C (TJ) and has a maximum power dissipation of 1.9W (Ta).

NVC6S5A354PLZT1G Quick Information

Product Type: MOSFET
Series: NVC6S5A354PLZT1G
Canonical Name: NVC6S5A354PLZT1G P-Channel MOSFET
Subcategory: Single FETs, MOSFETs

NVC6S5A354PLZT1G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NVC6S5A354PLZT1G Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NVC6S5A354PLZT1G Features

  • P-Channel MOSFET with 60V drain-source voltage.
  • Continuous drain current of 4A at 25°C.
  • Low on-resistance of 100mOhm at 2A, 10V.
  • Surface mountable in 6-CPH package.
  • Wide operating temperature range of -55°C to 175°C.

NVC6S5A354PLZT1G Applications

  • Suitable for high-voltage switching applications.
  • Used in power management circuits.
  • Ideal for motor control and drive circuits.
  • Applicable in load switching in industrial equipment.
  • Suitable for battery-powered device circuits.

NVC6S5A354PLZT1G FAQs

5 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage of the NVC6S5A354PLZT1G MOSFET?

The drain-source voltage (Vdss) is 60V.

What is the continuous drain current for the NVC6S5A354PLZT1G?

The continuous drain current (Id) is 4A at 25°C.

What is the maximum on-resistance of the NVC6S5A354PLZT1G?

The Rds On is a maximum of 100mOhm at 2A and 10V.

What is the operating temperature range for this MOSFET?

The operating temperature range is -55°C to 175°C (TJ).

What type of package is the NVC6S5A354PLZT1G in?

It is available in a SOT-23-6 Thin, TSOT-23-6 package, specifically the 6-CPH supplier device package.
