| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,000 pcs
|
24000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The NVBLS0D7N04M8TXG from On Semiconductor is a single N-Channel MOSFET designed for high-performance power management applications. This device boasts a drain-to-source voltage (Vds) of 40V and can handle a continuous drain current (Id) of up to 240A at 25°C case temperature. Its low on-resistance is specified at a maximum of 0.75mOhm at 80A and 10V gate-to-source voltage (Vgs).
Key electrical characteristics include a gate-to-source threshold voltage (Vgs(th)) of 4V maximum at 250µA and a gate charge (Qg) of 188nC maximum at 10V. The MOSFET is built using MOSFET (Metal Oxide) technology and operates within a wide temperature range of -55°C to 175°C.

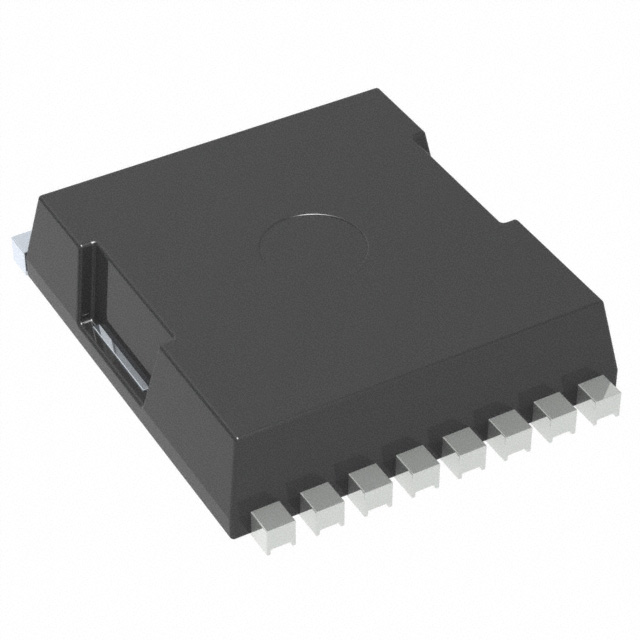

Packaged in an 8-PowerSFN (8-HPSOF) surface mount configuration, the NVBLS0D7N04M8TXG is suitable for space-constrained designs. It is AEC-Q101 Qualified and PPAP Capable, indicating its suitability for automotive applications. The device is also Pb-Free and RoHS Compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.69 | $1.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-to-source voltage is 40V.
The maximum continuous drain current is 240A.
The Rds On is a maximum of 0.75mOhm at 80A and 10V.
The operating temperature range is -55°C to 175°C.
It is in an 8-PowerSFN package.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
