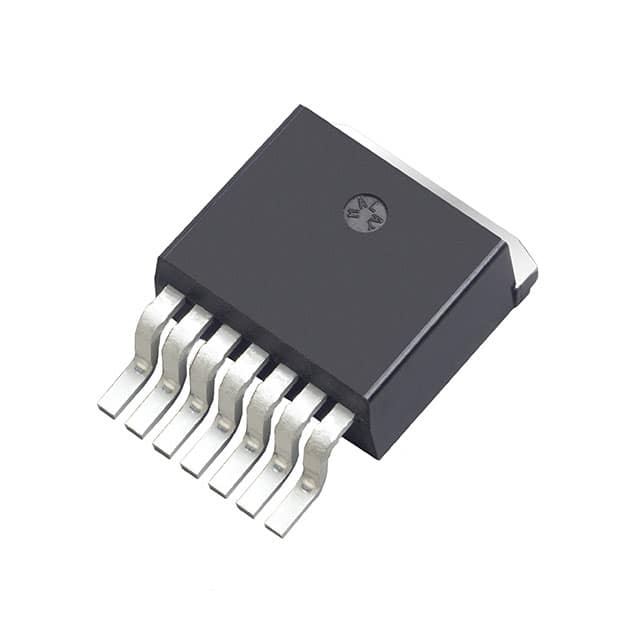

NVBG060N090SC1 The ON Semiconductor NVBG060N090SC1 is an N-Channel MOSFET designed for high voltage applications. It features a 900V drain-source voltage and a D2PAK-7 surface mount package.
Mfr Part #:

NVBG060N090SC1

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NVBG060N090SC1 is an N-Channel MOSFET designed for high voltage applications. It features a 900V drain-source voltage and a D2PAK-7 surface mount package.
✓ Total Stock: 316,200 pcs
$ Price Range: $0.99

NVBG060N090SC1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
315,200 pcs
On Request
315200 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NVBG060N090SC1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Industrial Grade
Input Capacitance (Ciss) (Max) @ Vds
Lead Style
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

NVBG060N090SC1 Description

Short technical summary and product information.

The ON Semiconductor NVBG060N090SC1 is a single N-Channel MOSFET from the Metal Oxide technology family. It offers a high drain-to-source voltage (Vdss) of 900V and supports continuous drain currents of 5.8A at ambient temperature (Ta) and 44A at case temperature (Tc). The gate charge (Qg) is a maximum of 88 nC at 15V, and the gate threshold voltage (Vgs(th)) is a maximum of 4.3V at 5mA.



This MOSFET has a maximum on-resistance (Rds On) of 84 mOhm at 20A and 15V. It is designed for surface mounting and comes in a TO-263-8, D²Pak (7 Leads + Tab), TO-263CA package. The operating temperature range is from -55°C to 175°C (TJ). Power dissipation is rated at 3.6W (Ta) and 211W (Tc).



Key electrical parameters include a maximum gate-source voltage (Vgs) of +19V and -10V, and a drive voltage of 15V. The input capacitance (Ciss) is 1800 pF at 450V.

NVBG060N090SC1 Quick Information

Product Type: MOSFET
Series: NVBG060N090SC1
Canonical Name: N-Channel MOSFET
Subcategory: N-Channel

NVBG060N090SC1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NVBG060N090SC1 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NVBG060N090SC1 Features

  • N-Channel MOSFET with 900V drain-source voltage.
  • Continuous drain current up to 44A (Tc).
  • Low Rds On of 84mOhm at 20A, 15V.
  • Surface mountable D2PAK-7 package.
  • Wide operating temperature range: -55°C to 175°C.

NVBG060N090SC1 Applications

  • Suitable for high-voltage power switching.
  • Used in power supply designs.
  • Applicable in motor control circuits.
  • Ideal for industrial power applications.

NVBG060N090SC1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage for the NVBG060N090SC1?

The maximum drain-source voltage (Vdss) for the NVBG060N090SC1 is 900 V.

What is the continuous drain current rating?

The continuous drain current is 5.8A at ambient temperature (Ta) and 44A at case temperature (Tc).

What is the package type for this MOSFET?

This MOSFET is supplied in a D2PAK-7 package, also described as TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.

What is the operating temperature range?

The operating temperature range is -55°C to 175°C (TJ).

Is the NVBG060N090SC1 RoHS compliant?

The RoHS status is listed as RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.

What is the maximum on-resistance (Rds On)?

The maximum Rds On is 84mOhm at 20A and 15V.
