NV1-453FF-C
TDK Corporation

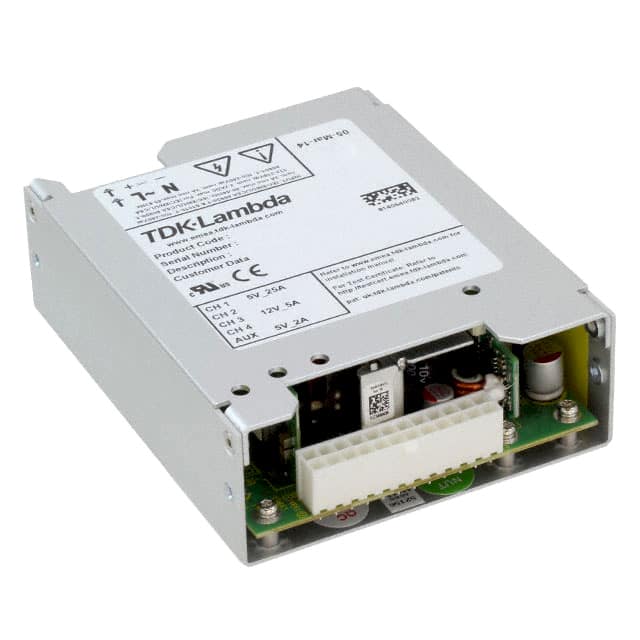

The TDK Corporation NV1-453FF-C is an enclosed AC DC converter with 175W of power and four outputs. It features chassis mounting and a wide operating temperature range.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |
The TDK Corporation NV1-452FF-C is an enclosed AC/DC converter designed for ITE (Commercial) and Medical applications. It delivers 175W of power and operates with 90% efficiency.
Key electrical specifications include adjustable output, PFC, remote sense, and universal input. It features 4 outputs and a nominal output current of 1A, with one specified output voltage of -15V. The operating temperature range is 0°C to 70°C with derating.
Mechanically, this converter is designed for chassis mounting and has dimensions of 127.0mm x 94.0mm x 31.8mm. It holds CE approval.
Compliance includes RoHS3, MSL 1, and REACH Unaffected, though these are noted with low confidence.
0°C to 70°C with derating.
127.0mm x 94.0mm x 31.8mm (Length x Width x Height).
4 outputs.
90% typical.
Chassis Mount.
ITE (Commercial) and Medical.
CE approval.
