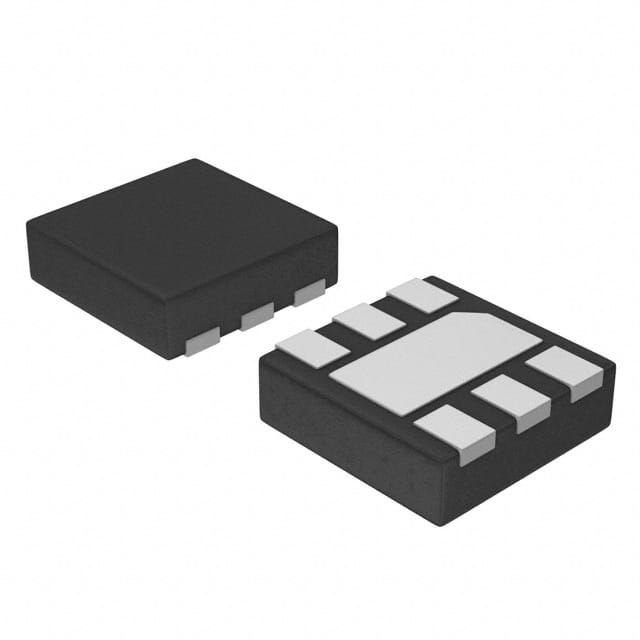

The NUP3112UPMUTAG is a three-line voltage transient suppressor array designed to protect voltage-sensitive components requiring ultra-low capacitance from ESD and transient voltage events. It features a common anode design protecting three independent high-speed data lines and a VCC power line in a single six-lead UDFN low profile package.
Key specifications include a working peak reverse voltage of 4V, ultra-low capacitance of 0.7pF typical at 0V and 1MHz, and an ESD rating of 14kV contact per IEC 61000-4-2 Level 4. The device provides power line protection for the VCC pin and operates over a junction temperature range of -40°C to 125°C.
Due to its low capacitance, this device is suited for high-frequency designs such as USB 2.0 high-speed interfaces, cell phones, MP3 players, and SIM card protection. The UDFN package measures 1.6x1.6 mm with a low profile of 0.50 mm, ideal for space-constrained designs.
The device is surface mount in a 6-UFDFN exposed pad package (supplier device package 6-UDFN 1.6x1.6 mm). It is supplied in tape and reel packaging with a standard quantity of 3000. The part is Pb-Free and RoHS3 compliant (unverified), with MSL 1 rating.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum working peak reverse voltage is 4V.
The typical capacitance is 0.7pF at 0V and 1MHz.
The ESD rating is 14kV contact per IEC 61000-4-2 Level 4.
It protects three unidirectional data lines plus a VCC pin, totaling four protection lines.
It is available in a 6-UFDFN Exposed Pad package (6-UDFN 1.6x1.6 mm).
The operating junction temperature range is -40°C to 125°C.
It is listed as RoHS3 compliant, but this is unverified.
