NUF8010MUT2G The On Semiconductor NUF8010MUT2G is an 8-channel EMI filter with integrated ESD protection. It features RC (Pi) filtering with 100 Ohm resistance and 7pF capacitance.
Mfr Part #:

NUF8010MUT2G

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NUF8010MUT2G is an 8-channel EMI filter with integrated ESD protection. It features RC (Pi) filtering with 100 Ohm resistance and 7pF capacitance.
✓ Total Stock: 4,980 pcs
$ Price Range: $0.99

NUF8010MUT2G Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
1,980 pcs
On Request
1980 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NUF8010MUT2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
Capacitance
Center
ESD Protection
Filter Order
Height
Length
Mounting Type
Number of Channels
Operating Temperature
Resistance
Tape & Reel
Technology
Type
Values
Width
View Similar Products (0)

NUF8010MUT2G Description

Short technical summary and product information.

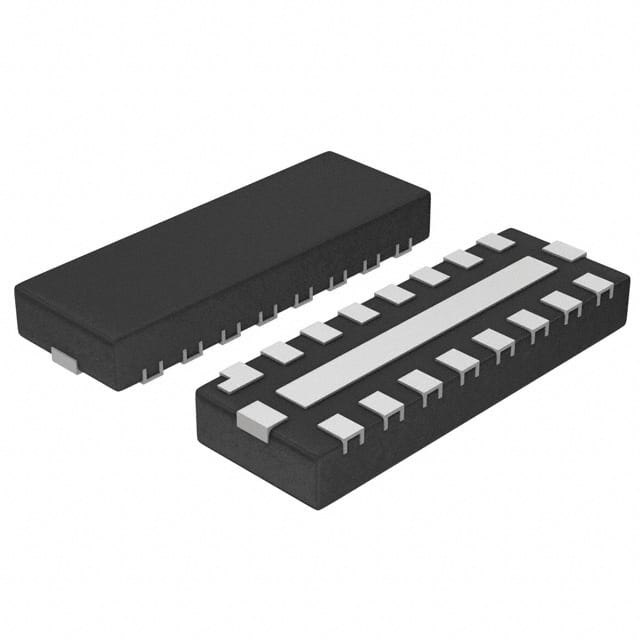

The NUF8010MUT2G from On Semiconductor is an 8-channel EMI filter designed with integrated ESD protection. This device utilizes a C-R-C Pi-style filter array, offering typical component values of 100 Ohm resistance and 7 pF capacitance. It provides a cutoff frequency of 215 MHz and stopband attenuation greater than -20 dB from 800 MHz to 5.0 GHz, making it suitable for parallel interfaces with data rates up to 143 Mbps.



This filter is ideal for applications requiring minimization of wireless interference, effectively reducing noise from 2G/3G, GPS, Bluetooth, and WLAN signals. It is particularly useful for EMI filtering on LCD and camera data lines, as well as I/O ports and keypads.



The NUF8010MUT2G is housed in a low-profile 16-lead UDFN package, measuring 3.5 mm x 1.2 mm with a height of 0.55 mm. Its surface mount design facilitates integration into compact electronic systems. The device offers ±8.0 kV ESD protection on each channel, meeting IEC61000-4-2 Level 4 contact discharge standards.

NUF8010MUT2G Quick Information

Product Type: EMI Filter
Series: NUF8010MU
Canonical Name: NUF8010MUT2G 8-Channel EMI Filter with Integrated ESD Protection
Subcategory: RC Network

NUF8010MUT2G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NUF8010MUT2G Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NUF8010MUT2G Features

  • 8-channel EMI filter with integrated ESD protection.
  • RC (Pi) filter with 100 Ohm and 7pF values.
  • Provides -20dB attenuation from 800MHz to 5GHz.
  • ±8.0 kV ESD protection on each channel.
  • Compact 16-UFDFN surface mount package.

NUF8010MUT2G Applications

  • EMI filtering for LCD and camera data lines.
  • Protection for mobile device I/O ports.
  • Minimizes interference from wireless signals.
  • Suitable for high-speed data interfaces.

NUF8010MUT2G FAQs

5 frequently asked questions generated from this part’s specifications.
What are the resistance and capacitance values for the NUF8010MUT2G EMI filter?

The NUF8010MUT2G features resistance values of 100 Ohm and capacitance values of 7 pF.

What is the cutoff frequency of the NUF8010MUT2G filter?

The cutoff frequency for the NUF8010MUT2G is 215 MHz.

What is the ESD protection level for the NUF8010MUT2G?

The NUF8010MUT2G offers ±8.0 kV ESD protection on each channel, tested to IEC61000-4-2 Level 4 contact discharge standards.

What is the operating temperature range for this EMI filter?

The operating temperature range for the NUF8010MUT2G is -40°C to 85°C.

What package type is the NUF8010MUT2G supplied in?

The NUF8010MUT2G is supplied in a 16-UFDFN Exposed Pad package.
