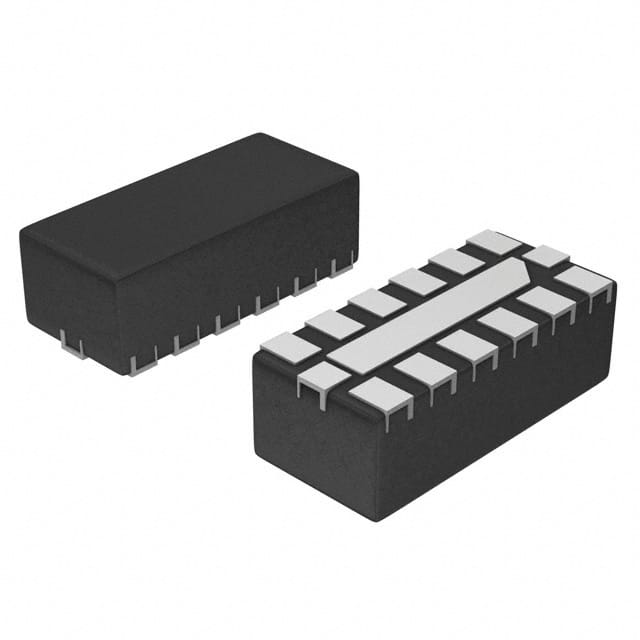

NUF6402MNT1G The On Semiconductor NUF6402MNT1G is a 4-channel EMI filter with integrated ESD protection. It offers 100Ω resistance and 17pF capacitance per channel.
Mfr Part #:

NUF6402MNT1G

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NUF6402MNT1G is a 4-channel EMI filter with integrated ESD protection. It offers 100Ω resistance and 17pF capacitance per channel.
✓ Total Stock: 5,115 pcs
$ Price Range: $0.99

NUF6402MNT1G Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
2,115 pcs
On Request
2115 pcs On Request 1 On Request On Request On Request On Request 2026-04-21 11:15:11
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NUF6402MNT1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
Capacitance
Center
Data Rate
ESD Protection
Filter Order
Height
Length
Mounting Type
Number of Channels
Operating Temperature
Resistance
Storage Temperature
Tape & Reel
Technology
Type
Values
Width
View Similar Products (0)

NUF6402MNT1G Description

Short technical summary and product information.

The NUF6402MNT1G from On Semiconductor is a four-channel (C-R-C) Pi-style EMI filter array with integrated ESD protection. It is designed for applications requiring minimized wireless interference, such as parallel interfaces with data rates up to 64 Mbps.



Key electrical specifications include typical component values of R = 100Ω and C = 17pF, delivering a cutoff frequency of 95 MHz. The filter provides stop band attenuation greater than -30 dB from 800 MHz to 3.0 GHz, effectively minimizing interference from signals like 2G/3G, GPS, Bluetooth, and WLAN. Each channel is protected with ±8.0 kV ESD protection, meeting IEC61000-4-2 Level 4 contact discharge standards.



This device is ideal for EMI filtering for LCD and camera data lines, as well as I/O ports and keypads. It operates within a temperature range of -40°C to 85°C and is housed in a low-profile 12-lead DFN12 surface mount package measuring 3.00mm x 1.35mm.



The NUF6402MNT1G is a Pb-Free device, contributing to system reliability and space savings with its integrated EMI/ESD solution.

NUF6402MNT1G Quick Information

Product Type: EMI Filter
Canonical Name: NUF6402MN 4-Channel EMI Filter with Integrated ESD Protection
Subcategory: RC Network

NUF6402MNT1G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NUF6402MNT1G Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NUF6402MNT1G Features

  • Four-channel EMI filter with ESD protection.
  • 100Ω resistance and 17pF capacitance per channel.
  • 95 MHz cutoff frequency.
  • ±8.0 kV ESD protection per channel.
  • DFN12 surface mount package.

NUF6402MNT1G Applications

  • EMI filtering for LCD data lines.
  • EMI filtering for camera data lines.
  • Protection for I/O ports.
  • Protection for keypads.

NUF6402MNT1G FAQs

5 frequently asked questions generated from this part’s specifications.
What are the resistance and capacitance values for the NUF6402MNT1G?

The NUF6402MNT1G has typical component values of R = 100Ω and C = 17pF per channel.

What is the cutoff frequency of the NUF6402MNT1G EMI filter?

The cutoff frequency for the NUF6402MNT1G is 95 MHz.

What is the ESD protection level for the NUF6402MNT1G?

The NUF6402MNT1G provides ±8.0 kV ESD protection on each channel, meeting IEC61000-4-2 Level 4 contact discharge standards.

What is the operating temperature range for this EMI filter?

The operating temperature range for the NUF6402MNT1G is -40°C to 85°C.

What package type is the NUF6402MNT1G supplied in?

The NUF6402MNT1G is supplied in a 12-lead DFN12 surface mount package.
