NUF6010MUT2G The On Semiconductor NUF6010MUT2G is a 6-channel EMI filter with integrated ESD protection. It offers 100Ω resistance and 7pF capacitance per channel.
Mfr Part #:

NUF6010MUT2G

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NUF6010MUT2G is a 6-channel EMI filter with integrated ESD protection. It offers 100Ω resistance and 7pF capacitance per channel.
✓ Total Stock: 22,073 pcs
$ Price Range: $0.99

NUF6010MUT2G Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
18,000 pcs
On Request
18000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,020 pcs
On Request
4020 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
53 pcs
On Request
53 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NUF6010MUT2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Attenuation Value
Automotive Grade
Capacitance
Center
Data Rate
ESD Protection
Filter Order
Halogen Free
Height
Industrial Grade
Length
Medical Grade
Military Grade
Mounting Type
Number of Channels
Operating Temperature
Operating Temperature Range
Resistance
Tape & Reel
Technology
Type
Values
Width
View Similar Products (0)

NUF6010MUT2G Description

Short technical summary and product information.

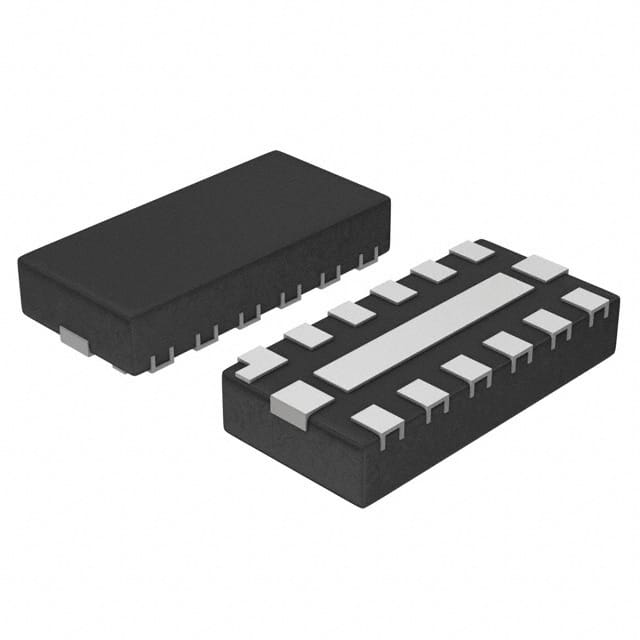

The NUF6010MUT2G from On Semiconductor is a six-channel EMI filter array featuring a C-R-C Pi-style configuration with integrated ESD protection. It provides typical component values of 100Ω for resistance and 7pF for capacitance, delivering a cutoff frequency of 250 MHz.



This filter offers stop band attenuation greater than -20 dB from 800 MHz to 3.0 GHz, making it suitable for parallel interfaces with data rates up to 167 Mbps where minimizing wireless interference is critical. The attenuation range is effective against interference from 2G/3G, GPS, Bluetooth, and WLAN signals.



Each channel provides ±8.0 kV ESD protection according to IEC61000-4-2 Level 4. The device is housed in a low-profile 12-lead UDFN12 surface mount package measuring 2.50mm x 1.20mm with a height of 0.55mm.



Applications include EMI filtering for LCD and camera data lines, as well as I/O ports and keypads. The NUF6010MUT2G is Pb-Free, Halogen Free/BFR Free, and RoHS Compliant.

NUF6010MUT2G Quick Information

Product Type: EMI Filter
Canonical Name: NUF6010MU 6-Channel EMI Filter with Integrated ESD Protection
Subcategory: RC Network

NUF6010MUT2G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NUF6010MUT2G Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NUF6010MUT2G Features

  • Six-channel C-R-C Pi-style EMI filter.
  • Integrated ±8.0 kV ESD protection per channel.
  • 100Ω resistance and 7pF capacitance values.
  • 250 MHz cutoff frequency.
  • UDFN12 surface mount package.

NUF6010MUT2G Applications

  • EMI filtering for LCD data lines.
  • EMI filtering for camera data lines.
  • Protection for I/O ports.
  • Protection for keypads.

NUF6010MUT2G FAQs

5 frequently asked questions generated from this part’s specifications.
What are the R and C values for the NUF6010MUT2G EMI filter?

The NUF6010MUT2G has typical component values of R = 100Ω and C = 7pF per channel.

What is the cutoff frequency of the NUF6010MUT2G?

The cutoff frequency for the NUF6010MUT2G is 250 MHz.

What level of ESD protection does the NUF6010MUT2G offer?

The NUF6010MUT2G offers ±8.0 kV ESD protection on each channel, meeting IEC61000-4-2 Level 4 contact discharge standards.

What is the operating temperature range for this EMI filter?

The operating temperature range for the NUF6010MUT2G is -40°C to 85°C.

What package type is the NUF6010MUT2G available in?

The NUF6010MUT2G is available in a 12-lead UDFN12 surface mount package.
