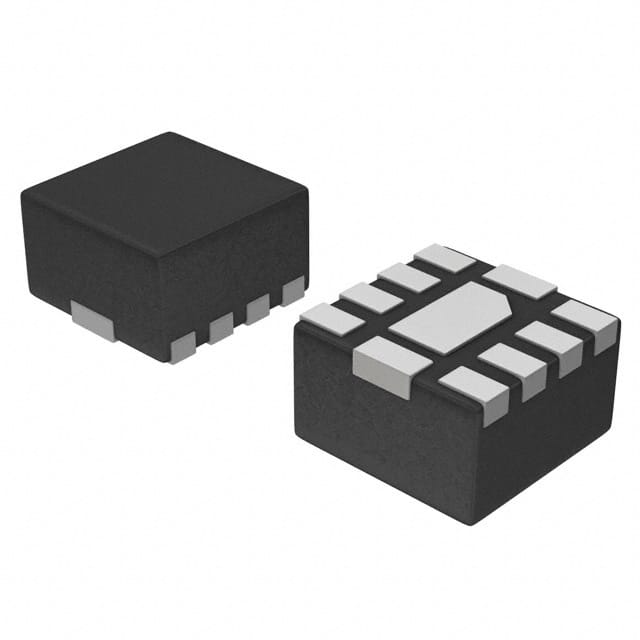

The NUF4403MNT1G from ON Semiconductor is a four-channel (C-R-C) Pi-style EMI filter array with integrated ESD protection. It offers typical component values of R = 100Ω and C = 17pF, delivering a cutoff frequency of 105 MHz and stop band attenuation greater than -35 dB from 800 MHz to 2.2 GHz.
This performance makes the NUF4403MNT1G ideal for parallel interfaces with data rates up to 70 Mbps in applications where wireless interference must be minimized. The specified attenuation range is effective in minimizing interference from 2G/3G, GPS, Bluetooth, and WLAN signals.
The device provides ±18 kV ESD protection on each channel via IEC61000-4-2 contact discharge and ±30 kV via air discharge. It is housed in a low-profile 8-lead 1.6 mm x 1.6 mm DFN8 surface mount package.
Applications include EMI filtering for LCD and camera data lines, as well as EMI filtering and protection for I/O ports and keypads.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NUF4403MNT1G has R = 100Ω and C = 17pF values.
The cutoff frequency for the NUF4403MNT1G is 105 MHz.
The NUF4403MNT1G provides a stop band attenuation greater than -35 dB from 800 MHz to 2.2 GHz.
The NUF4403MNT1G offers ±18 kV ESD protection via IEC61000-4-2 contact discharge and ±30 kV via air discharge.
The operating temperature range for the NUF4403MNT1G is -40°C to 85°C.
The NUF4403MNT1G is available in an 8-lead DFN8 surface mount package.
