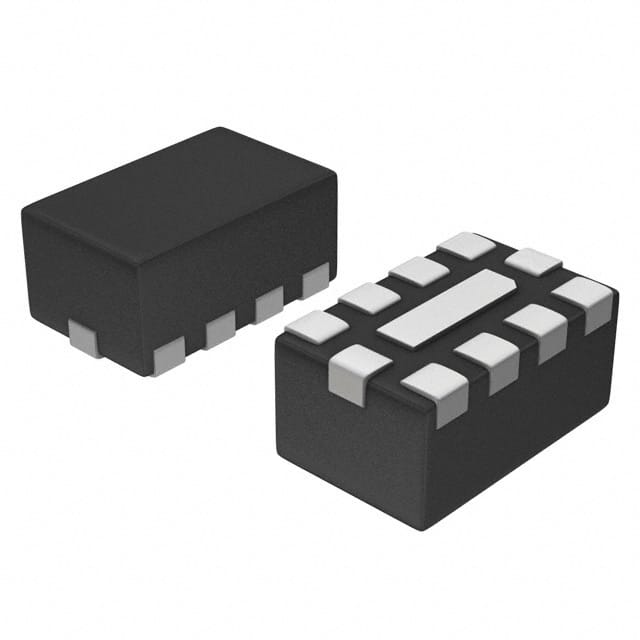

NUF4310MNTAG The ON Semiconductor NUF4310MNTAG is a 4-channel EMI filter featuring RC (Pi) topology with 100 Ohm resistance and 9pF capacitance per channel. It offers ±8.0 kV ESD protection and operates within a -40°C to 85°C temperature range.
Mfr Part #:

NUF4310MNTAG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NUF4310MNTAG is a 4-channel EMI filter featuring RC (Pi) topology with 100 Ohm resistance and 9pF capacitance per channel. It offers ±8.0 kV ESD protection and operates within a -40°C to 85°C temperature range.
✓ Total Stock: 3,615 pcs
$ Price Range: $0.99

NUF4310MNTAG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,615 pcs
On Request
3615 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NUF4310MNTAG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
Capacitance
Center
Data Rate
ESD Protection
Filter Order
Height
Length
Mounting Type
Number of Channels
Operating Temperature
Resistance
Technology
Type
Values
Width
View Similar Products (0)

NUF4310MNTAG Description

Short technical summary and product information.

The ON Semiconductor NUF4310MNTAG is a 4-channel EMI filter designed for robust signal integrity. It utilizes an RC (Pi) filter topology, with each channel featuring 100 Ohm resistance and 9pF capacitance. This configuration provides a cutoff frequency of 185 MHz and significant stop-band attenuation greater than -25 dB from 800 MHz to 4.0 GHz.



Integrated ESD protection is a key feature, offering ±8.0 kV contact discharge protection on each channel, meeting IEC61000-4-2 Level 4 standards. This makes the NUF4310MNTAG ideal for protecting sensitive data lines in applications such as LCD and camera interfaces, as well as general I/O ports and keypads.



The device is housed in a compact 8-lead WDFN8 surface mount package measuring 1.60mm x 1.00mm with a height of 0.79mm. This low-profile package contributes to system reliability and space savings. The NUF4310MNTAG is also a Pb-Free device, suitable for modern manufacturing processes.



With a maximum data rate capability of 124 Mbps, this filter is well-suited for minimizing wireless interference from sources like 2G/3G, GPS, Bluetooth, and WLAN signals in parallel interfaces.

NUF4310MNTAG Quick Information

Product Type: EMI Filter
Series: NUF4310MN
Canonical Name: NUF4310MNTAG 4-Channel EMI Filter with Integrated ESD Protection
Subcategory: RC (Pi) Filter

NUF4310MNTAG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NUF4310MNTAG Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NUF4310MNTAG Features

  • Four-channel RC (Pi) EMI filter.
  • 100 Ohm resistance, 9pF capacitance per channel.
  • ±8.0 kV ESD protection on each channel.
  • 185 MHz cutoff frequency.
  • Compact 1.60mm x 1.00mm WDFN8 package.

NUF4310MNTAG Applications

  • EMI filtering for LCD data lines.
  • EMI filtering for camera data lines.
  • Protection for I/O ports.
  • Protection for keypads.
  • Minimizes wireless interference.

NUF4310MNTAG FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the NUF4310MNTAG?

The resistance value is 100 ohms.

What is the capacitance of the NUF4310MNTAG?

The capacitance is 9 picofarads.

What is the cutoff frequency of this filter?

The cutoff frequency is 185 MHz.

What package type does the NUF4310MNTAG use?

It uses a WDFN8 surface-mount package.

What is the operating temperature range?

-40°C to 85°C.

Does the NUF4310MNTAG provide ESD protection?

Yes, it provides ±8.0 kV ESD protection.
