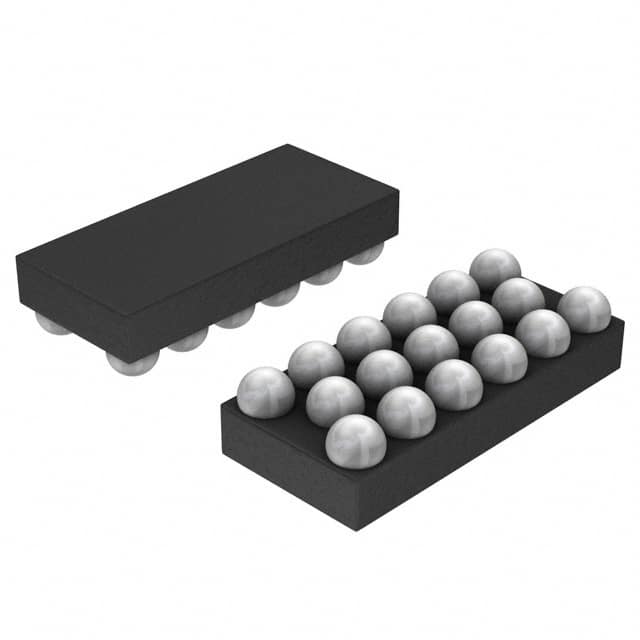

The NUF4107FCT1G from ON Semiconductor is a four-channel EMI Pi-filter array with integrated USB filtering circuitry and speed detection. This device is designed to provide greater than -35 dB attenuation from 800 MHz to 2.2 GHz, making it suitable for protecting data lines from electromagnetic interference.
Key electrical characteristics include EMI filter resistors of 100 Ohms and a total capacitance of 60pF. The device also incorporates USB filtering and impedance matching resistors, along with USB pull-up and speed detection resistors. ESD protection is provided across all capacitors, with TVS protected inputs complying with IEC61000-4-2 Level 4 standards (30 kV contact/air discharge) and all pins exceeding 2000 V Human Body Model.
This filter array is housed in a low-profile flip-chip package (17-WFBGA, FCBGA) with surface mount capabilities. It operates within a temperature range of -40°C to +85°C. The integration of 27 discretes into a single package offers significant cost and space savings for applications such as cell phones, handheld portables, notebook computers, and MP3 players.
The NUF4107FCT1G is available in a Pb-free package and is supplied on tape and reel in quantities of 3000 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The EMI filter resistors have a typical value of 100 Ohms.
The capacitance value is 60pF per channel.
The operating temperature range is -40°C to +85°C.
The device offers ESD protection compliant with IEC61000-4-2 Level 4 (30 kV contact/air discharge) and exceeds 2000 V Human Body Model.
It is supplied in a 17-WFBGA, FCBGA package.
