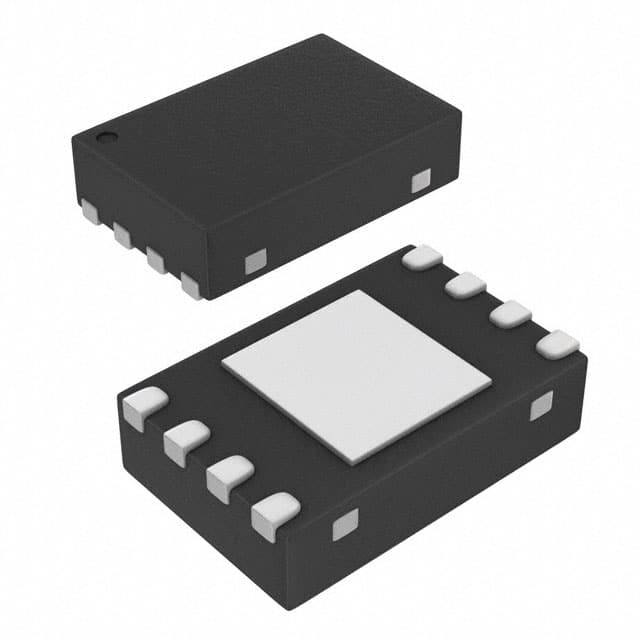

The NUF2114MNT1G from ON Semiconductor is a 2-line audio EMI filter designed for speaker applications, providing both EMI filtering and ESD protection. It features a low-pass RC (Pi) filter configuration with a resistance of 9 Ohms and a capacitance of 60pF per line. This device offers greater than -30 dB attenuation at frequencies from 900 MHz to 3.0 GHz and provides ESD protection clamping transients from static discharges, meeting IEC61000-4-2 Level 4 standards with 30 kV contact discharge protection.
This filter is housed in a compact 2x2 mm DFN8 package with an exposed pad, suitable for surface mounting. It operates within a temperature range of -40°C to 85°C. The NUF2114MNT1G is designed for applications such as wireless phones, MP3 players, PDAs, digital cameras, and portable DVDs, where effective noise suppression and transient protection are critical for audio signal integrity.
Key electrical characteristics include a cutoff frequency of 50 MHz and a maximum reverse working voltage of 12V. The device integrates the functionality of 10 discrete components, simplifying board design and reducing component count. It is also a Pb-Free device, aligning with environmental standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NUF2114MNT1G features 9 Ohm resistance and 60pF capacitance per line.
The cutoff frequency for the NUF2114MNT1G is 50 MHz.
Yes, the NUF2114MNT1G provides ESD protection and complies with IEC61000-4-2 Level 4 standards.
The operating temperature range for the NUF2114MNT1G is -40°C to 85°C.
The NUF2114MNT1G is supplied in an 8-VFDFN Exposed Pad package.
The NUF2114MNT1G has a package size of 2.00mm x 2.00mm.
Yes, the NUF2114MNT1G is a Pb-Free device.
