| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,416,000 pcs
|
4416000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request | |
|
2,721 pcs
|
2721 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
1,712 pcs
|
1712 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

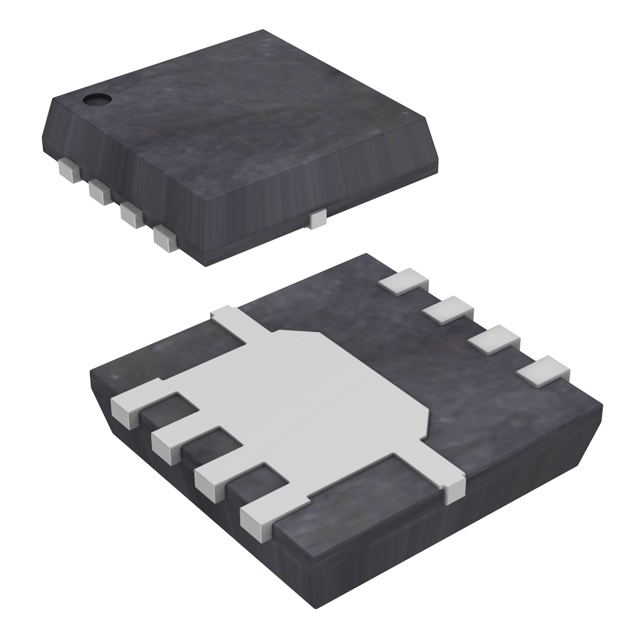

The NTTFS4C02NTAG from ON Semiconductor is a high-performance N-Channel MOSFET. It is designed to minimize conduction, driver, and switching losses, making it suitable for demanding applications.
Key electrical specifications include a drain-to-source voltage (Vdss) of 30V and a maximum continuous drain current of 164A at 25°C case temperature. The on-resistance (Rds(on)) is as low as 2.25mOhm at 20A and 10V gate-source voltage, and 3.1mOhm at 4.5V. The input capacitance (Ciss) is 2980 pF at 15V, and the gate charge (Qg) is 20 nC at 4.5V.
This MOSFET operates within a temperature range of -55°C to 150°C. It is housed in an 8-PowerWDFN package, suitable for surface mounting. The device also offers ESD protection.
Applications include DC-DC converters, power load switches, and notebook battery management systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-to-source voltage (Vdss) for the NTTFS4C02NTAG is 30V.
The maximum continuous drain current is 164A at 25°C case temperature.
The on-resistance (Rds(on)) is a maximum of 2.25mOhm at 20A and 10V gate-source voltage.
The operating junction temperature range is -55°C to 150°C.
It is supplied in an 8-PowerWDFN package for surface mounting.
Yes, the device is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
