| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,880 pcs
|
11880 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,162 pcs
|
2162 pcs | On Request | 1 | On Request | On Request | 1537+ | On Request | On Request | |
|
1,077 pcs
|
1077 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
146 pcs
|
146 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Channels per Circuit | |
| Data Rate | |
| ESD Protection | |
| Features | |
| Latch-up Performance | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Supplier Package | |
| Translator Type | |
| Voltage |
The NTSX2102GU8H is a 2-bit, dual supply translating transceiver by NXP Semiconductors, designed for bidirectional voltage level translation. It features auto direction sensing and supports supply voltages from 1.65 V to 5.5 V, making it suitable for translating between common voltage nodes like 1.8 V, 2.5 V, 3.3 V, and 5.0 V.
Key electrical characteristics include a maximum data rate of 50 Mbit/s and an open-drain, tri-state output type. The device operates within a temperature range of -40°C to +85°C. It also includes IOFF circuitry for partial power-down mode operation, preventing damaging backflow current.

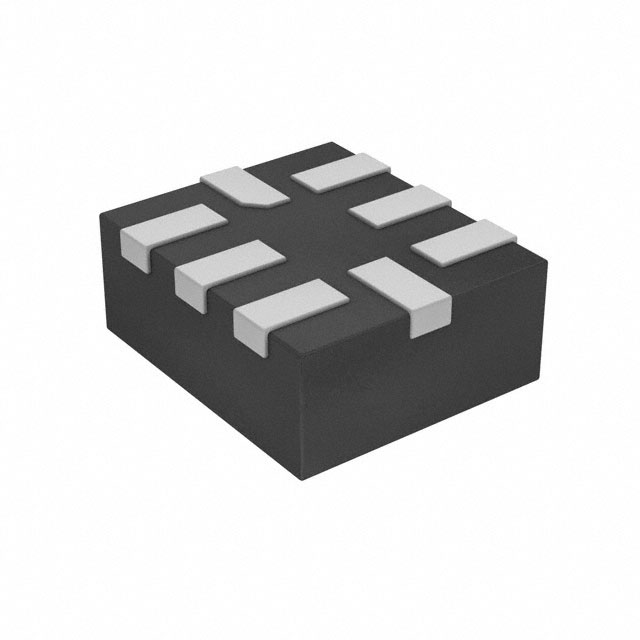

This transceiver is available in an 8-XQFN surface mount package with dimensions of 1.4 x 1.2 mm. Its features make it suitable for applications such as I2C/SMBus, UART, and GPIO interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range for the NTSX2102GU8H is 1.65 V to 5.5 V.
The NTSX2102GU8H operates within a temperature range of -40°C to 85°C.
The NTSX2102GU8H is provided in an 8-XQFN package.
The NTSX2102GU8H has 2 channels per circuit.
The NTSX2102GU8H supports a maximum data rate of 50 Mbit/s.
Yes, the NTSX2102GU8H has ESD protection, exceeding 2000 V for HBM JS-001 Class 2 and CDM JESD22-C101E.
The NTSX2102GU8H is a Voltage Level translator.
