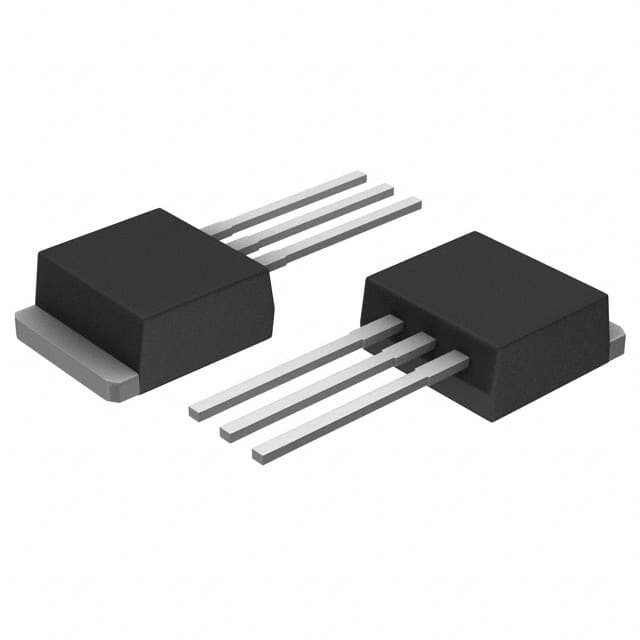

NTSB20100CT-1G The NTSB20100CT-1G is a 20A, 100V dual Schottky rectifier in I2PAK package, featuring very low forward voltage and fast switching.
Mfr Part #:

NTSB20100CT-1G

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The NTSB20100CT-1G is a 20A, 100V dual Schottky rectifier in I2PAK package, featuring very low forward voltage and fast switching.
✓ Total Stock: 9,579 pcs
$ Price Range: $0.39

NTSB20100CT-1G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
9,579 pcs
On Request
9579 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NTSB20100CT-1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Halogen Free
Lead Style
Mounting Type
Operating Temperature
SVHC Present
Speed
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

NTSB20100CT-1G Description

Short technical summary and product information.

The NTSB20100CT-1G is a trench-based dual Schottky rectifier from ON Semiconductor, designed for very low forward voltage and low leakage. It offers fast switching with exceptional temperature stability, low power loss, and high surge capability.



Electrical ratings include a peak repetitive reverse voltage of 100V, average rectified forward current of 20A per device (10A per diode), and a non-repetitive peak surge current of 150A. The operating junction temperature ranges from -40°C to +150°C.



Typical applications include switching power supplies (notebook adapters, ATX, flat panel displays), high frequency and DC-DC converters, freewheeling and OR-ing diodes, and reverse battery protection. The device is also suitable for instrumentation.



The NTSB20100CT-1G is housed in an I2PAK package with epoxy, molded case meeting UL 94-0 flammability rating. All external surfaces are corrosion resistant and leads are solderable. This device is Pb-Free and RoHS compliant.

NTSB20100CT-1G Quick Information

Product Type: Dual Schottky Rectifier
Series: NTSB20100CT
Canonical Name: NTSB20100CT-1G Dual Schottky Rectifier
Subcategory: Rectifier Diode Array

NTSB20100CT-1G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1
REACH Status: Compliant
Lead Free: Yes

NTSB20100CT-1G Estimated Pricing

Qty Low High
2,000+ $0.39 $0.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

NTSB20100CT-1G Features

  • Fine lithography trench-based Schottky technology.
  • Very low forward voltage for reduced power loss.
  • Fast switching with exceptional temperature stability.
  • High surge capability of 150A.
  • Pb-Free and RoHS compliant.

NTSB20100CT-1G Applications

  • Used in switching power supplies and adapters.
  • Ideal for high frequency and DC-DC converters.
  • Suitable for freewheeling and OR-ing diodes.
  • Applied in reverse battery protection circuits.

NTSB20100CT-1G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak repetitive reverse voltage of the NTSB20100CT-1G?

100V.

What is the average forward current rating per diode?

10A per diode, 20A per device.

What package type is the NTSB20100CT-1G?

I2PAK.

What is the non-repetitive peak surge current?

150A.

What is the operating junction temperature range?

-40°C to +150°C.

Is the NTSB20100CT-1G Pb-Free?

Yes, it is a Pb-Free device.

What technology is used in the NTSB20100CT-1G?

Fine lithography trench-based Schottky technology.
