| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

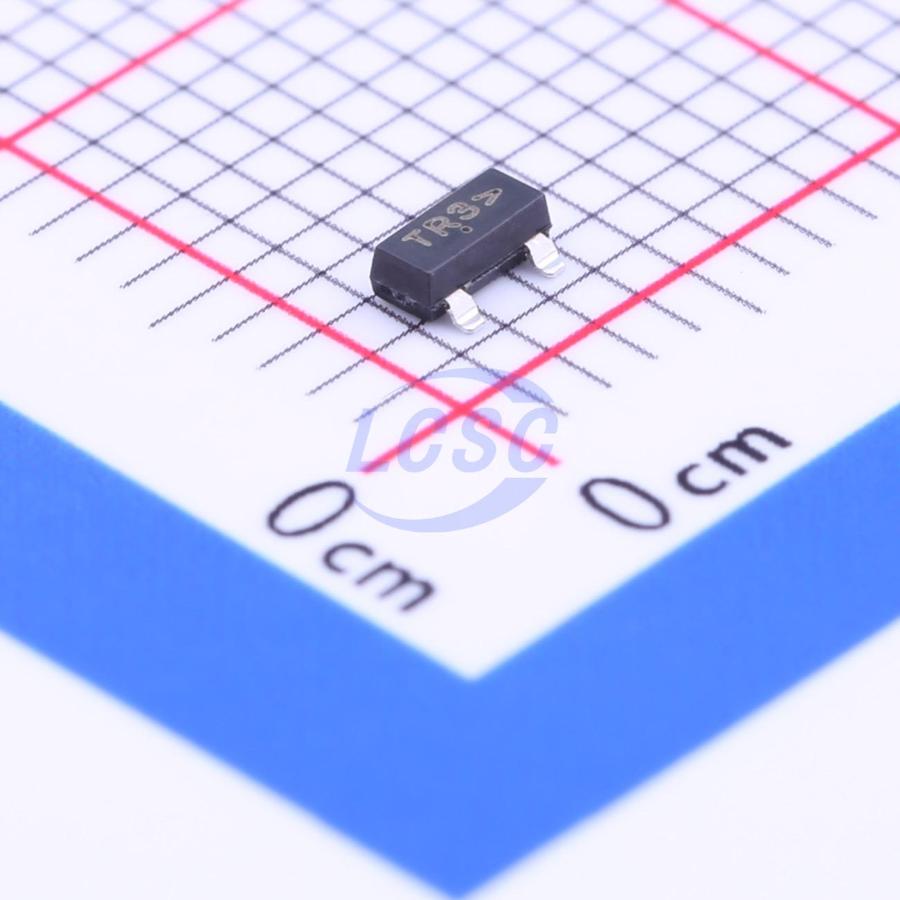

The ON Semiconductor NTR4503NT1G is a single N-Channel MOSFET designed for power applications. It features a 30V drain-to-source voltage (Vdss) and a continuous drain current of 1.5A at 25°C ambient temperature.
This MOSFET utilizes leading planar technology for low gate charge and fast switching characteristics. It has a gate-to-source voltage rating of ±20V and a gate threshold voltage of 3V at 250µA. The on-resistance is a maximum of 110mOhm at 2.5A and 10Vgs, with a typical value of 105mOhm at 4.5Vgs.
Packaged in a compact SOT-23-3 surface mount package, the NTR4503NT1G is suitable for applications requiring a small footprint. It operates within a temperature range of -55°C to 150°C. The device is Pb-Free and RoHS Compliant.
Key applications include DC-DC conversion, load switches for portable devices, and load/power switches for computing systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-to-source voltage (Vdss) is 30V.
The continuous drain current is 1.5A at 25°C ambient temperature.
The NTR4503NT1G is supplied in a SOT-23-3 package.
The operating temperature range is -55°C to 150°C.
Yes, the NTR4503NT1G is RoHS3 Compliant.
