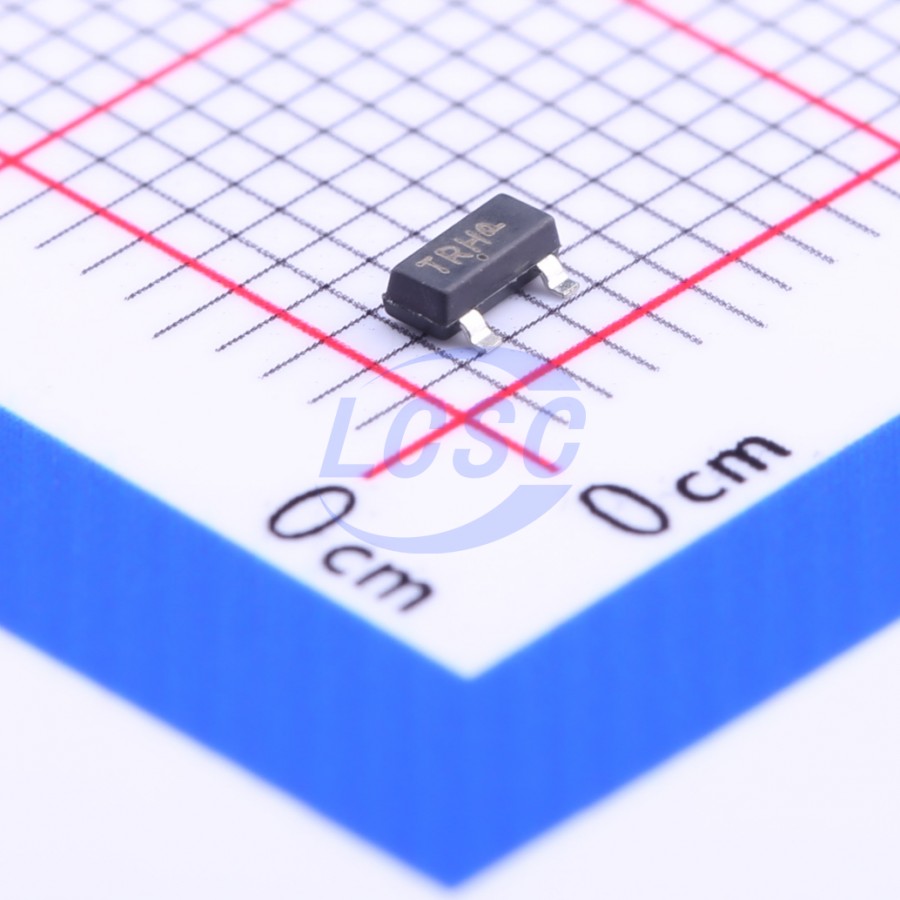

NTR3A30PZT1G The On Semiconductor NTR3A30PZT1G is a P-Channel MOSFET with a -20V drain-source voltage and 3A continuous drain current. It is housed in a compact SOT-23-3 package.
Mfr Part #:

NTR3A30PZT1G

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NTR3A30PZT1G is a P-Channel MOSFET with a -20V drain-source voltage and 3A continuous drain current. It is housed in a compact SOT-23-3 package.
✓ Total Stock: 16,556 pcs
$ Price Range: $0.99

NTR3A30PZT1G Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
9,000 pcs
On Request
9000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request 20+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,556 pcs
On Request
1556 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NTR3A30PZT1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Container Type
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Industrial Grade
Input Capacitance (Ciss) (Max) @ Vds
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Supplier Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

NTR3A30PZT1G Description

Short technical summary and product information.

The NTR3A30PZT1G from On Semiconductor is a P-Channel MOSFET designed for power management applications. It features a maximum drain-source voltage of -20V and a continuous drain current of 3A at 25°C ambient temperature.



This MOSFET offers a low on-resistance, with a maximum of 38mOhm at 3A and 4.5V Vgs. It operates within a temperature range of -55°C to 150°C. The device is packaged in a SOT-23-3 (TO-236) surface-mount package, making it suitable for space-constrained designs.



Key electrical characteristics include a gate threshold voltage of 1V (max) at 250µA and an input capacitance of 1651pF at 15V. The device also includes an ESD diode-protected gate.



Applications for the NTR3A30PZT1G include high-side load switches and battery switches, particularly in portable products like smartphones and tablets. Its Pb-free and halogen-free compliance aligns with modern environmental standards.

NTR3A30PZT1G Quick Information

Product Type: MOSFET
Series: NTR3A30PZ
Canonical Name: NTR3A30PZT1G P-Channel MOSFET
Subcategory: Single

NTR3A30PZT1G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NTR3A30PZT1G Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NTR3A30PZT1G Features

  • P-Channel MOSFET for power management.
  • Rated for -20V drain-source voltage.
  • Continuous drain current up to 3A.
  • Low on-resistance of 38mOhm.
  • Compact SOT-23-3 surface-mount package.

NTR3A30PZT1G Applications

  • Suitable for high-side load switches.
  • Ideal for battery switch applications.
  • Optimized for portable product power management.
  • Used in smartphones and tablets.

NTR3A30PZT1G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage for the NTR3A30PZT1G?

-20 V

What is the continuous drain current rating for the NTR3A30PZT1G?

3A (Ta)

What is the maximum on-resistance of the NTR3A30PZT1G?

38mOhm @ 3A, 4.5V

What is the operating temperature range for this MOSFET?

-55°C ~ 150°C (TJ)

What package type is the NTR3A30PZT1G supplied in?

SOT-23-3

Is the NTR3A30PZT1G RoHS compliant?

RoHS3 Compliant

What is the Moisture Sensitivity Level (MSL) for the NTR3A30PZT1G?

1 Unlimited
