| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
390 pcs
|
390 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

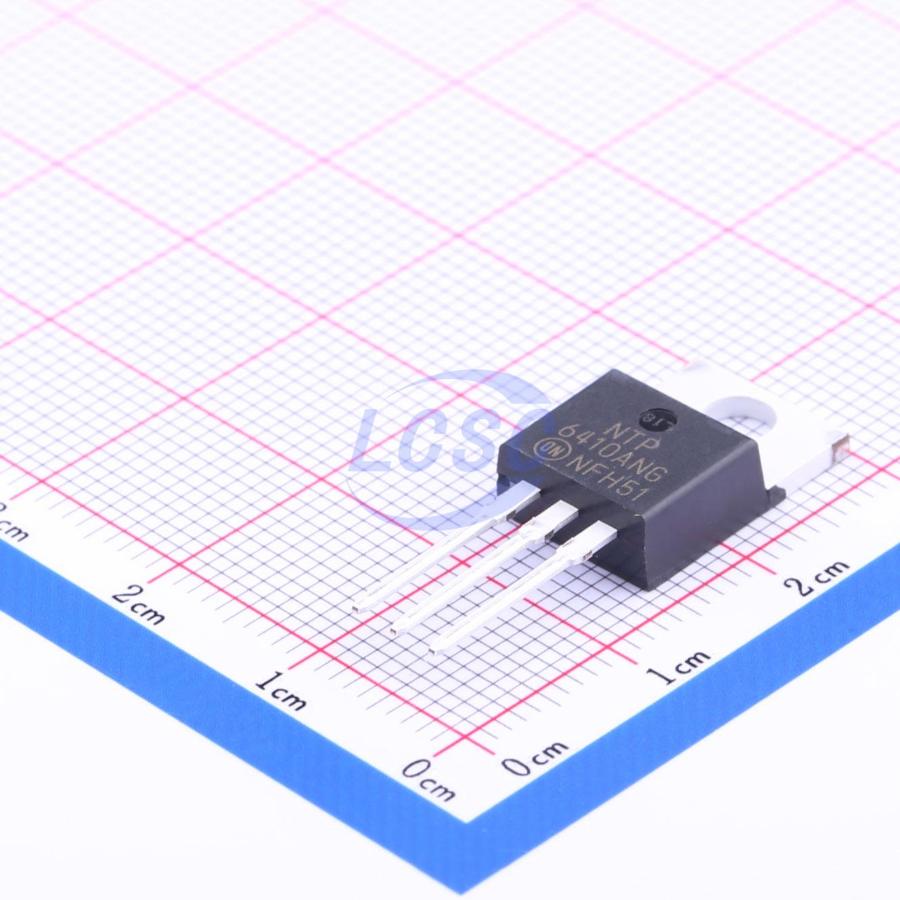

The ON Semiconductor NTP6410ANG is a power MOSFET featuring an N-Channel configuration. It is rated for a maximum drain-to-source voltage (Vds) of 100V and can handle a continuous drain current of 76A at 25°C case temperature, with a pulsed drain current capability of up to 305A.
This MOSFET boasts a low on-resistance (Rds(on)) of 13mOhm at 76A and 10V gate drive voltage, contributing to efficient power handling. The gate threshold voltage (Vgs(th)) is a maximum of 4V at 250µA. It operates across a wide temperature range from -55°C to 175°C.
Packaged in a TO-220-3 configuration, the NTP6410ANG is designed for through-hole mounting. Its thermal performance includes a junction-to-case thermal resistance of 0.8°C/W, allowing for effective heat dissipation under load. The device is also Pb-Free and RoHS Compliant.
Key electrical characteristics include an input capacitance (Ciss) of 4500pF at 25V and a gate charge (Qg) of 120nC at 10V. The device is 100% avalanche tested, indicating robust performance in overvoltage transient conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.33 | $3.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vds) for the NTP6410ANG is 100V.
The NTP6410ANG has a continuous drain current rating of 76A at 25°C case temperature.
The Rds(on) is a maximum of 13mOhm when measured at 76A drain current and 10V gate-source voltage.
The operating temperature range for the NTP6410ANG is -55°C to 175°C.
The NTP6410ANG is supplied in a TO-220-3 package.
Yes, the NTP6410ANG is RoHS3 Compliant.
